Plotting

Visualizing trajectories is crucial for understanding the solutions of trajectory optmization problems and NamedTrajectories exports a plot function that contains a lot of functionality that is continually being added to.

Makie.jl is used as the plotting framework. An extension package is used to load plotting functionality whenever a version of Makie is installed in the current environment. For example, use CairoMakie to creates high quality vector graphics.

The main recipe for named trajectory plotting is as follows:

namedplot(traj::NamedTrajectory, name::Symbol; kwargs...)

The plot function is a wrapper around namedplot that allows for easy plotting of NamedTrajectory objects. The plot function has the following signature:

plot(traj::NamedTrajectory, args...; kwargs...)

Basic example

Use a Makie backend to automatically load the NamedTrajectories plotting extension

using CairoMakie
using NamedTrajectories

# define the number timestamps
T = 100
Δt = 0.1
ts = [0:T-1...] * Δt

# define sinusoidal state trajectories
X = zeros(3, T)
X[1, :] = sin.(3 * 2π * ts / (2 * (T - 1) * Δt))
X[2, :] = -sin.(5 * 2π * ts / (2 * (T - 1) * Δt))
X[3, :] = sin.(9 * 2π * ts / (2 * (T - 1) * Δt))

# define gaussian shaped controls
U = stack(
    [
        exp.(-((ts .- ts[length(ts)÷3]) / 2.0).^2) .* sin.(5.0 * ts),
        exp.(-((ts .- ts[2(length(ts)÷3)]) / 1.5).^2) .* sin.(4.0 * ts)
    ];
    dims=1
)
V = exp.(-((ts .- ts[length(ts)÷2]) ./ 1.5).^2) .* sin.(6.0 * ts)

# create the trajectory
traj = NamedTrajectory(
    (
        x=X,
        u=U,
        v=V
    );
    timestep=Δt,
    controls=(:u, :v)
)

# plot the trajectory

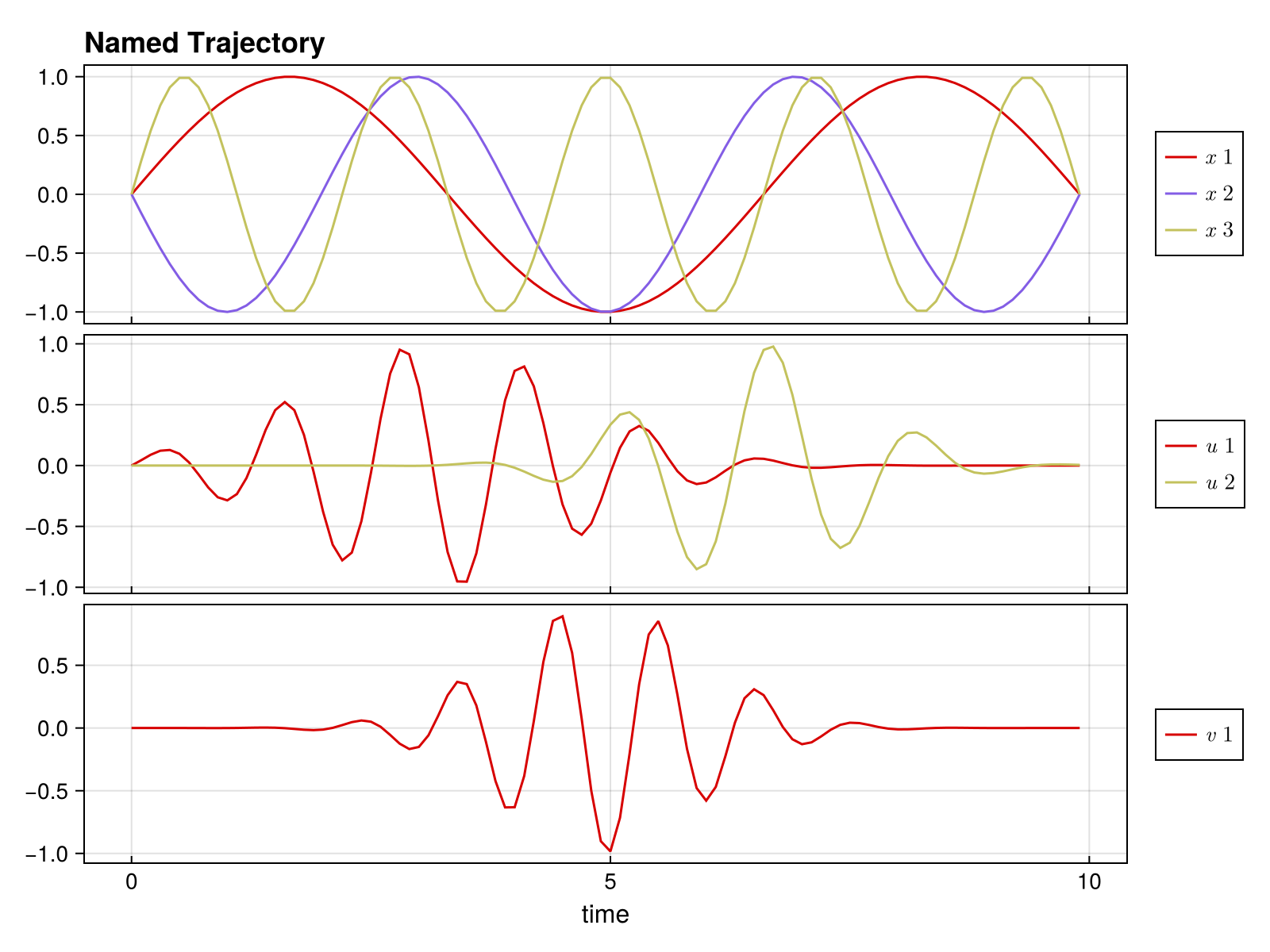

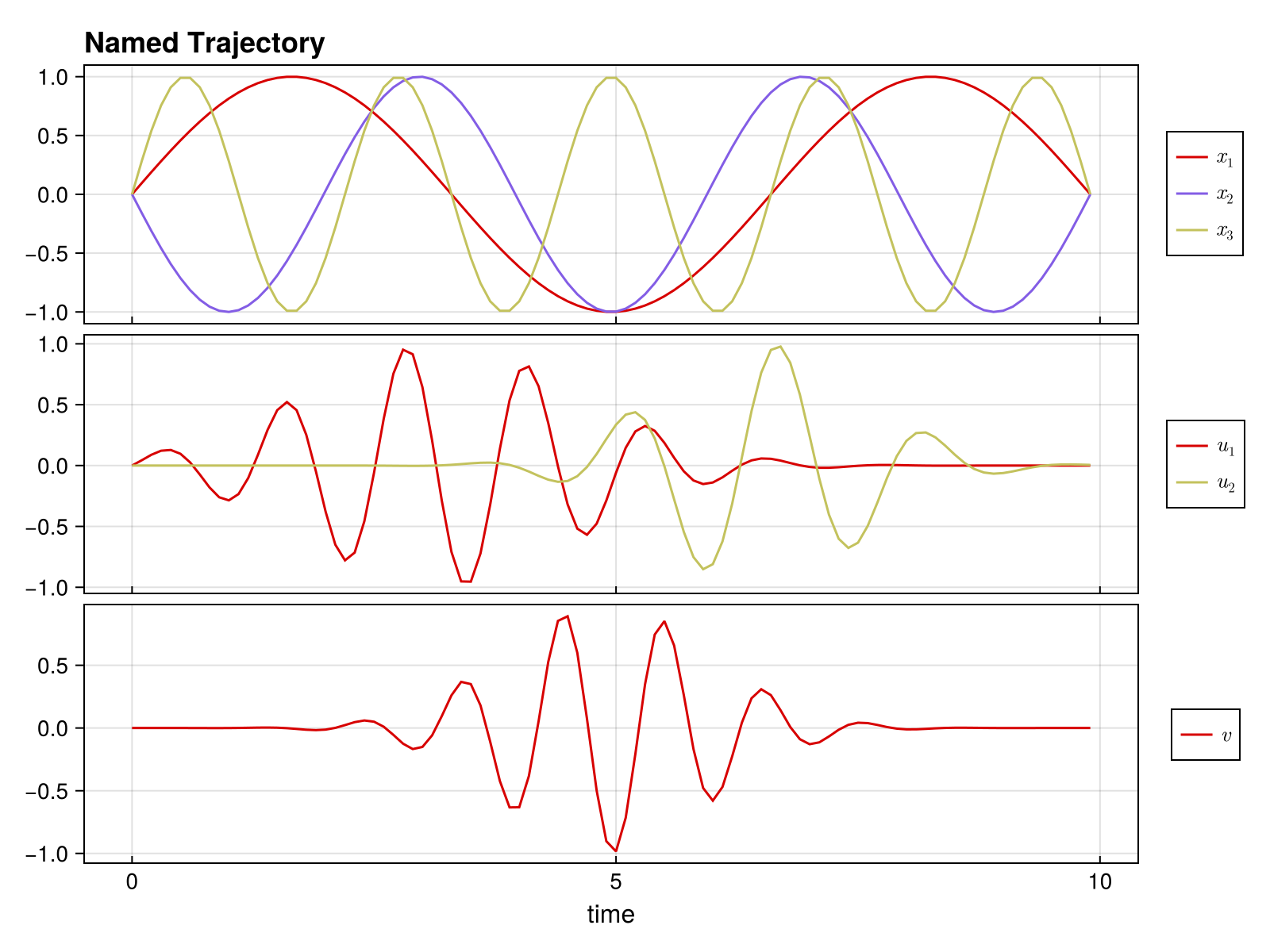

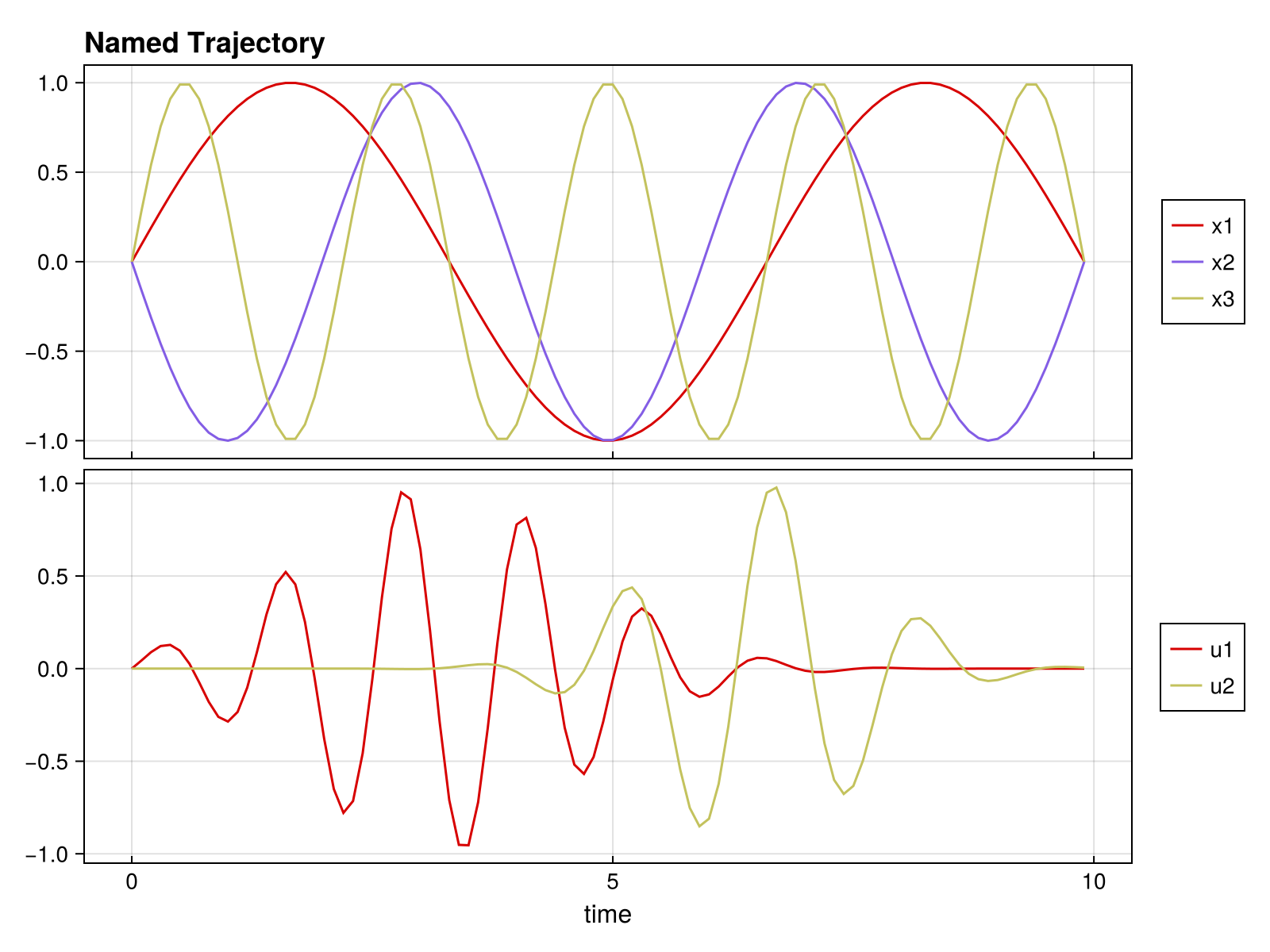

plot(traj)

Selectively plotting components

We can selectively plot components of the trajectory by passing a Vector of Symbols to the components keyword argument. For example, if we only wanted to plot the state and the first control we could do the following:

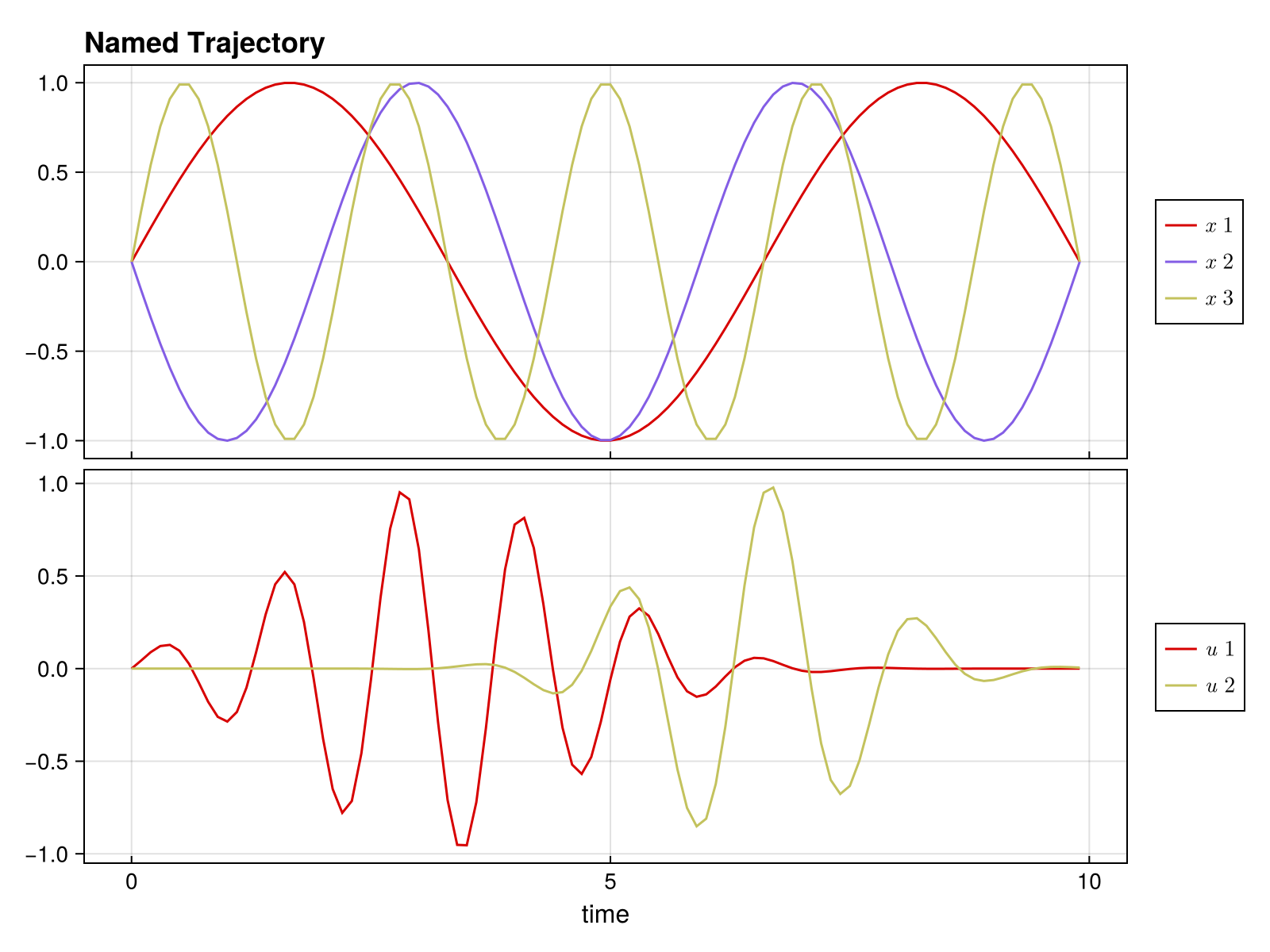

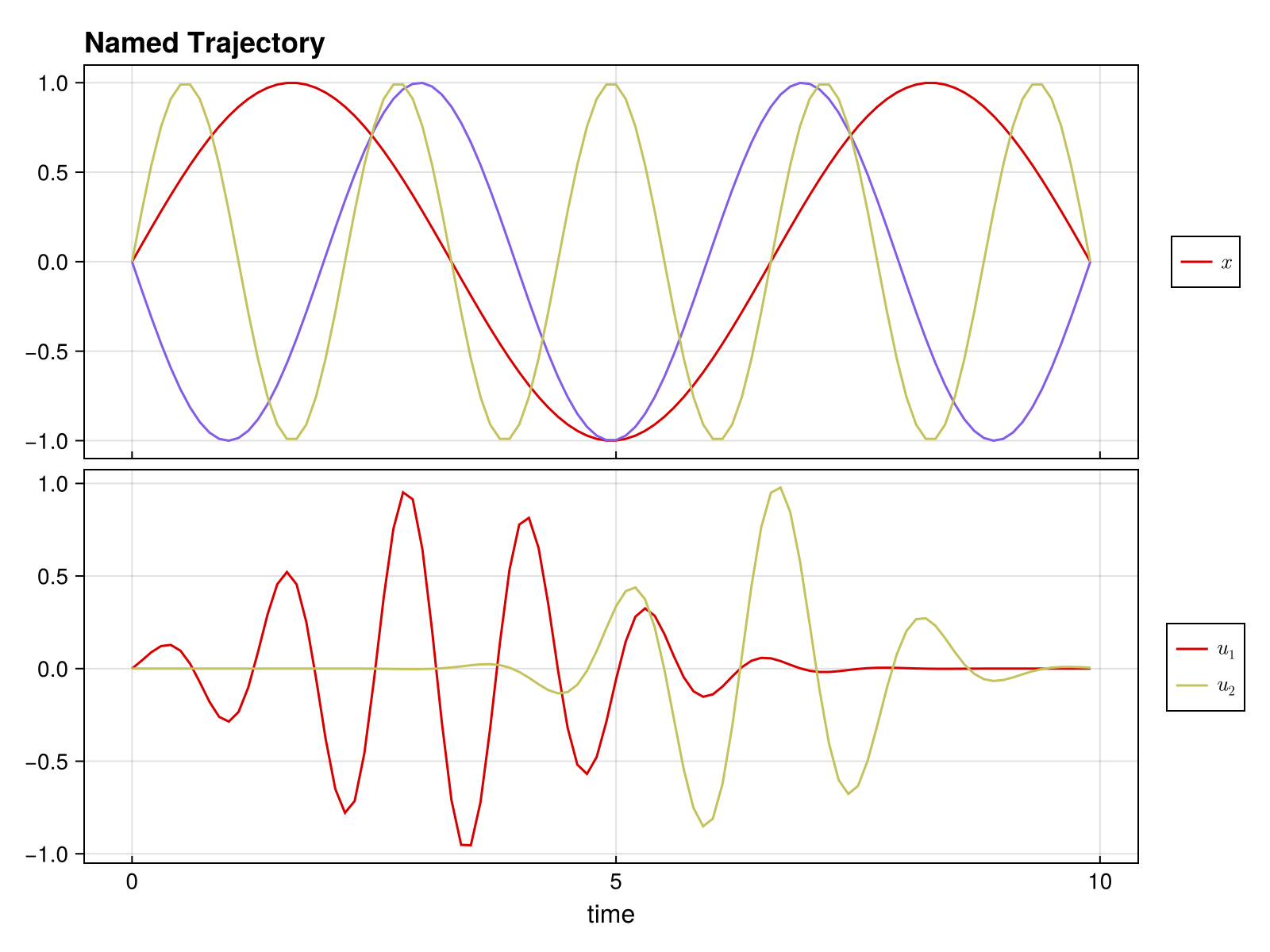

plot(traj, [:x, :u])

Playing with transformations

We can also apply transformations to the components of the trajectory. Transformations are performed on columns of the data.

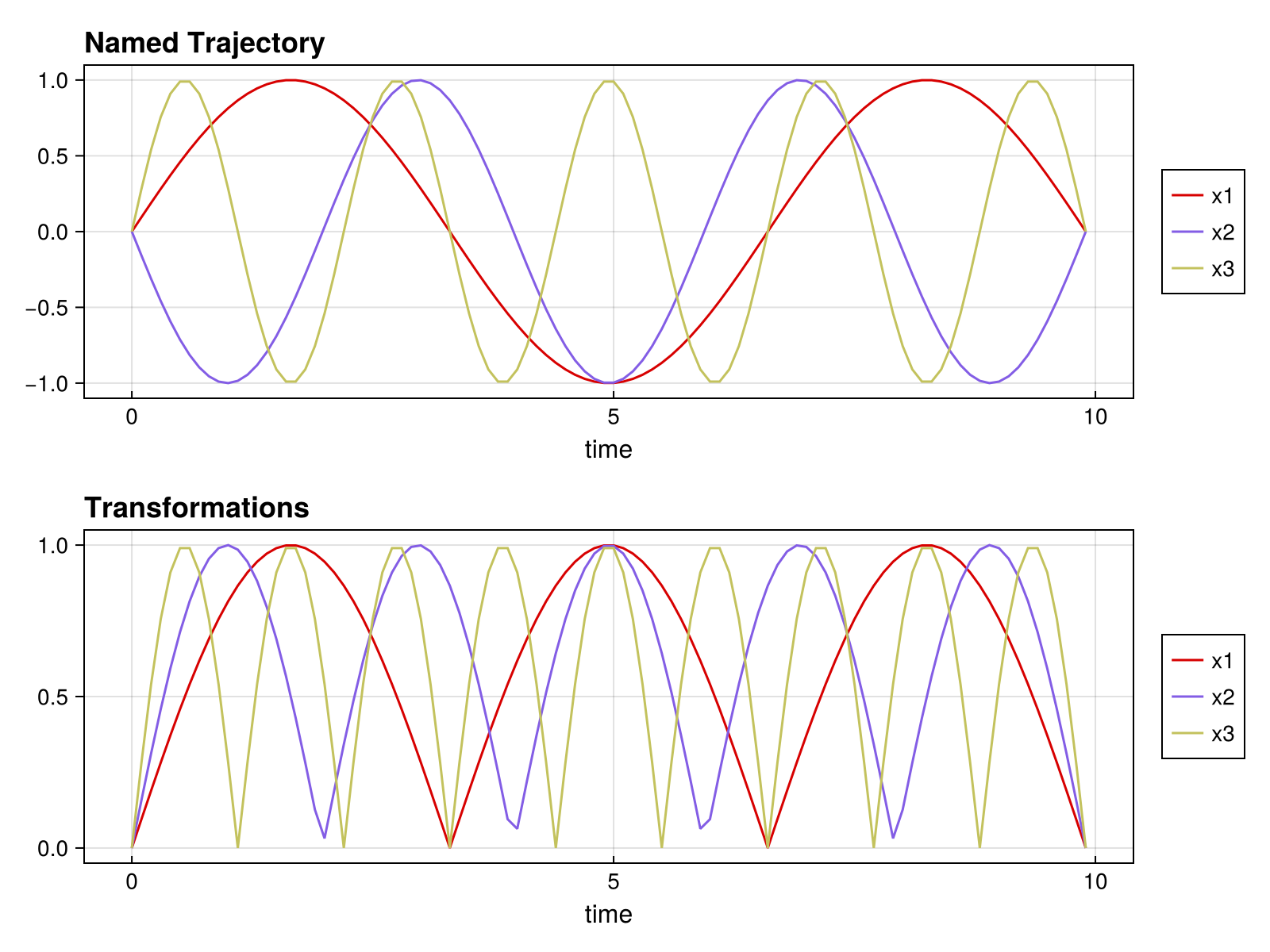

For example, if we wanted to plot absolute values of the states we could do the following:

transformations = [(:x => x -> abs.(x))]

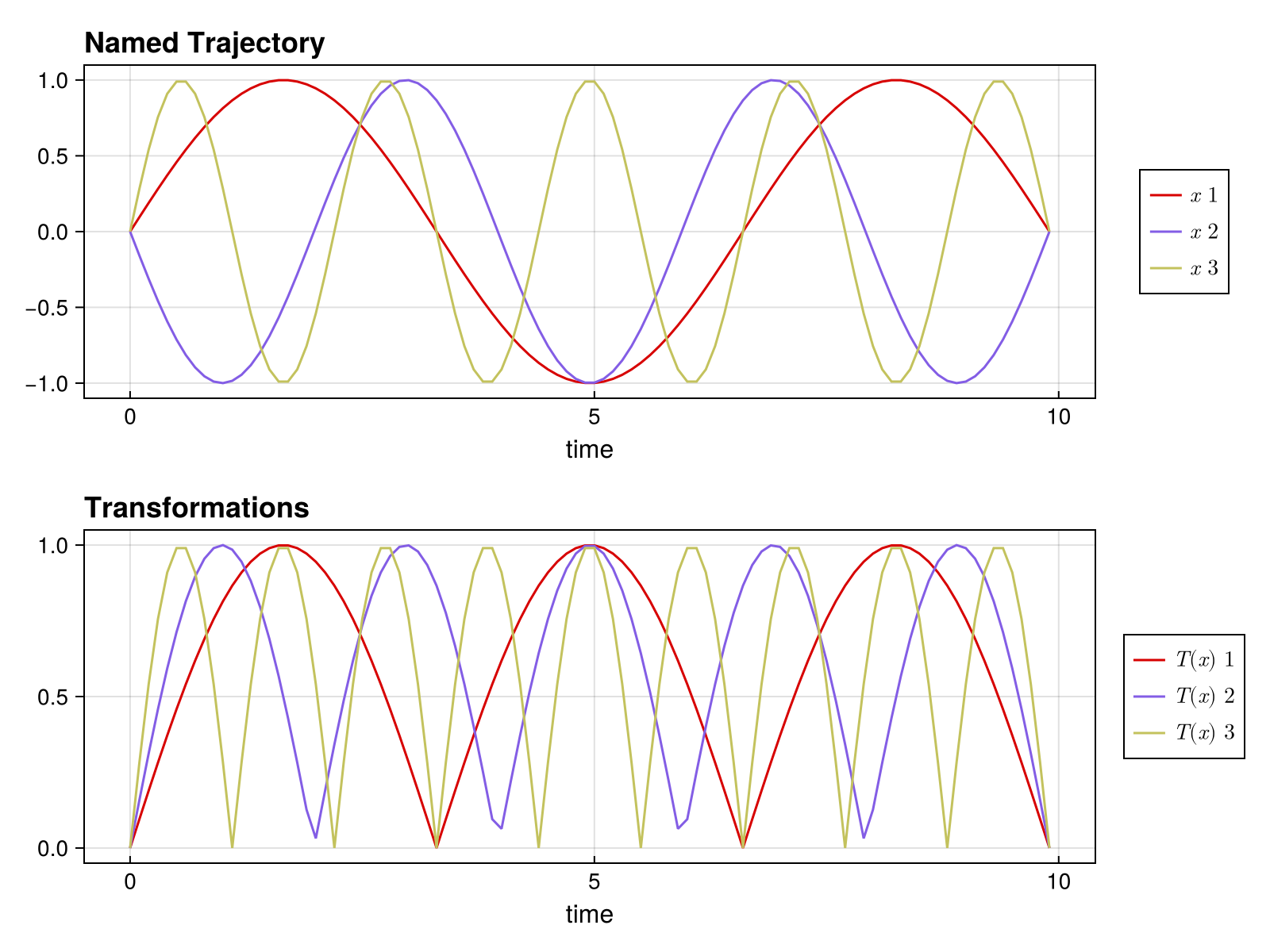

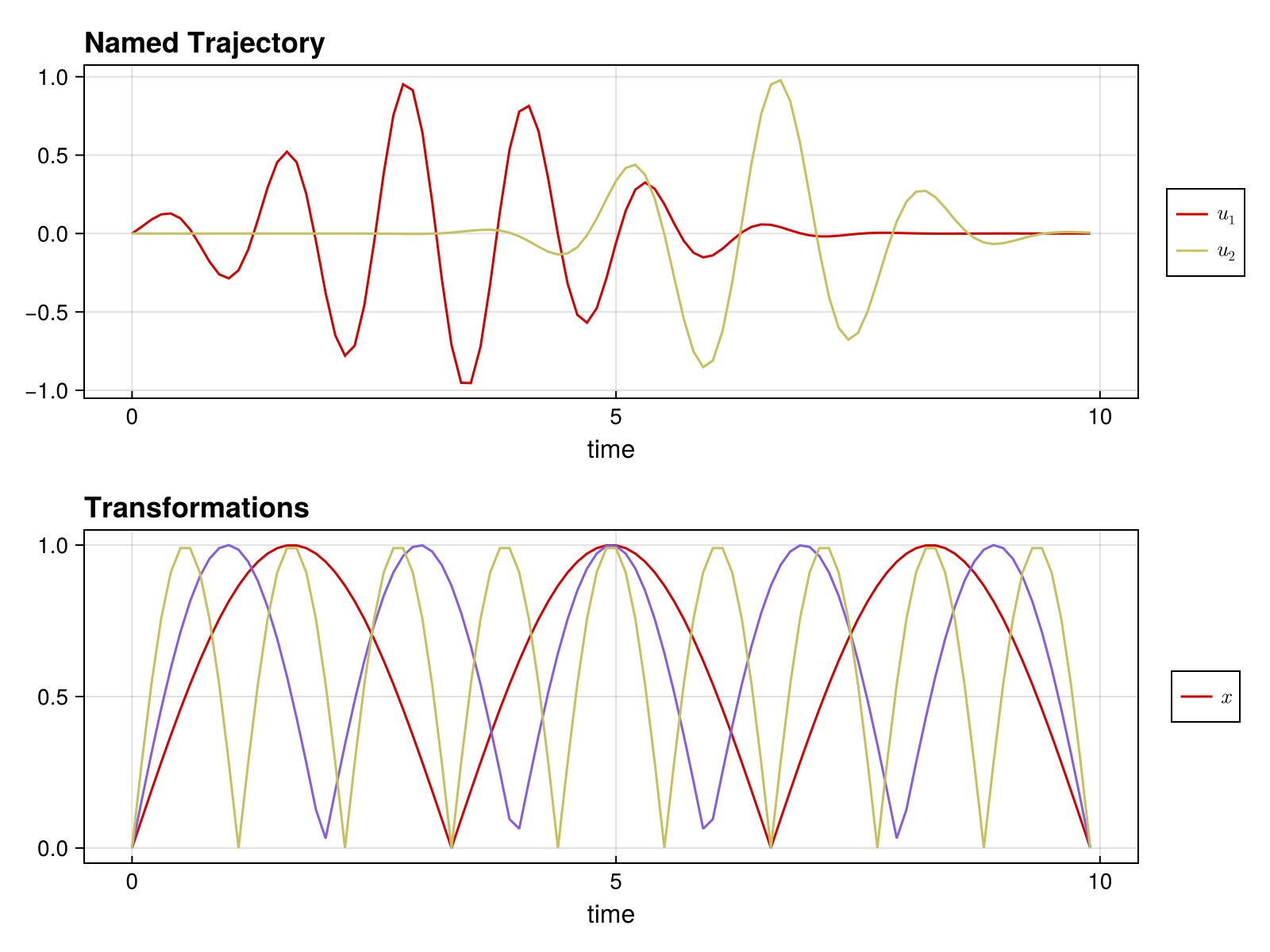

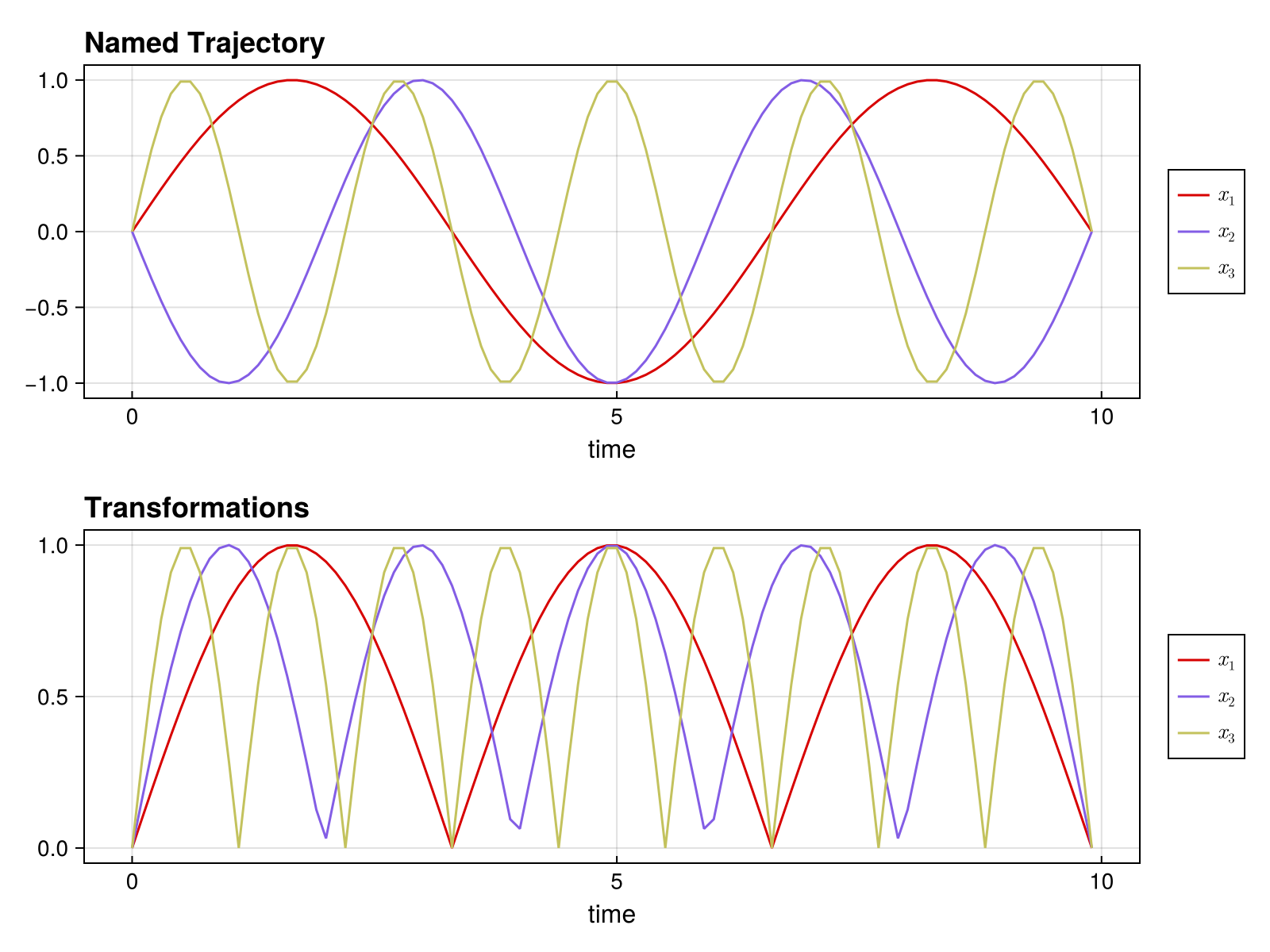

plot(traj, [:x]; transformations=transformations)

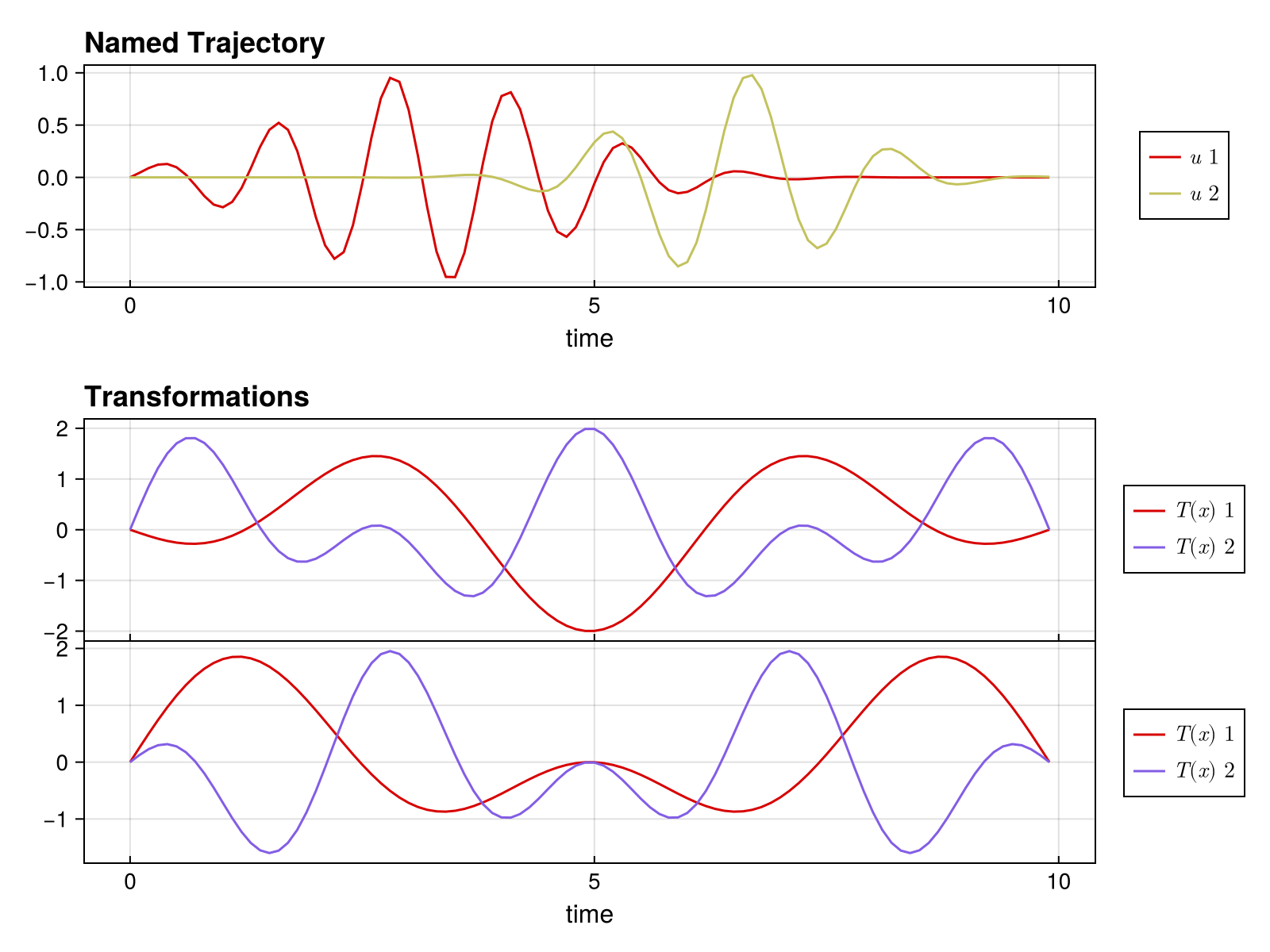

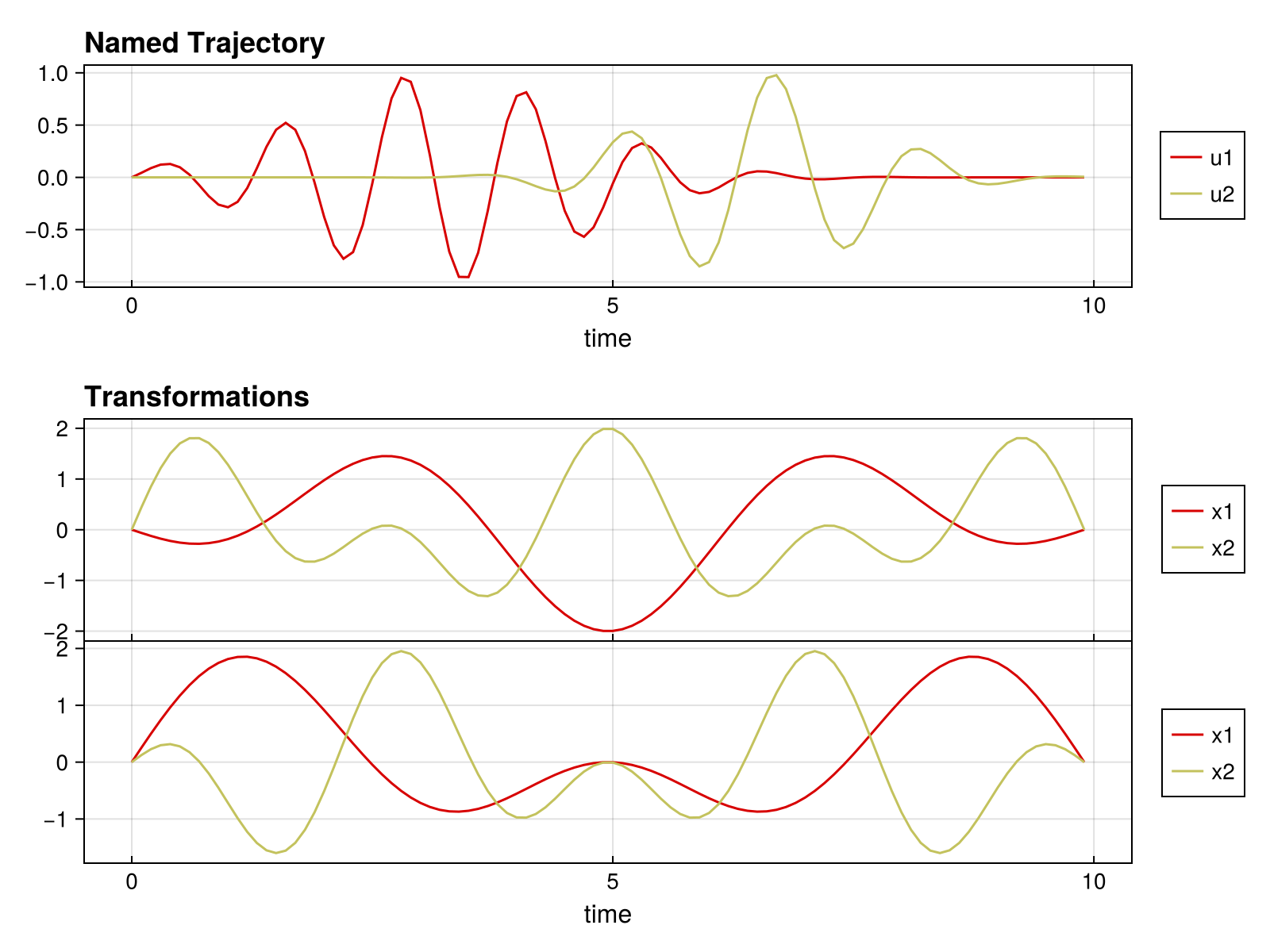

We can also pass multiple transformations to the same component, with selective labels and titles:

# define the transformations
transformations = [
    (:x => x -> [x[1] + x[2], x[3] - x[2]]),
    (:x => x -> [x[1] - x[2], x[3] + x[2]])
]

# plot the trajectory, with only the transformation and the `u` control

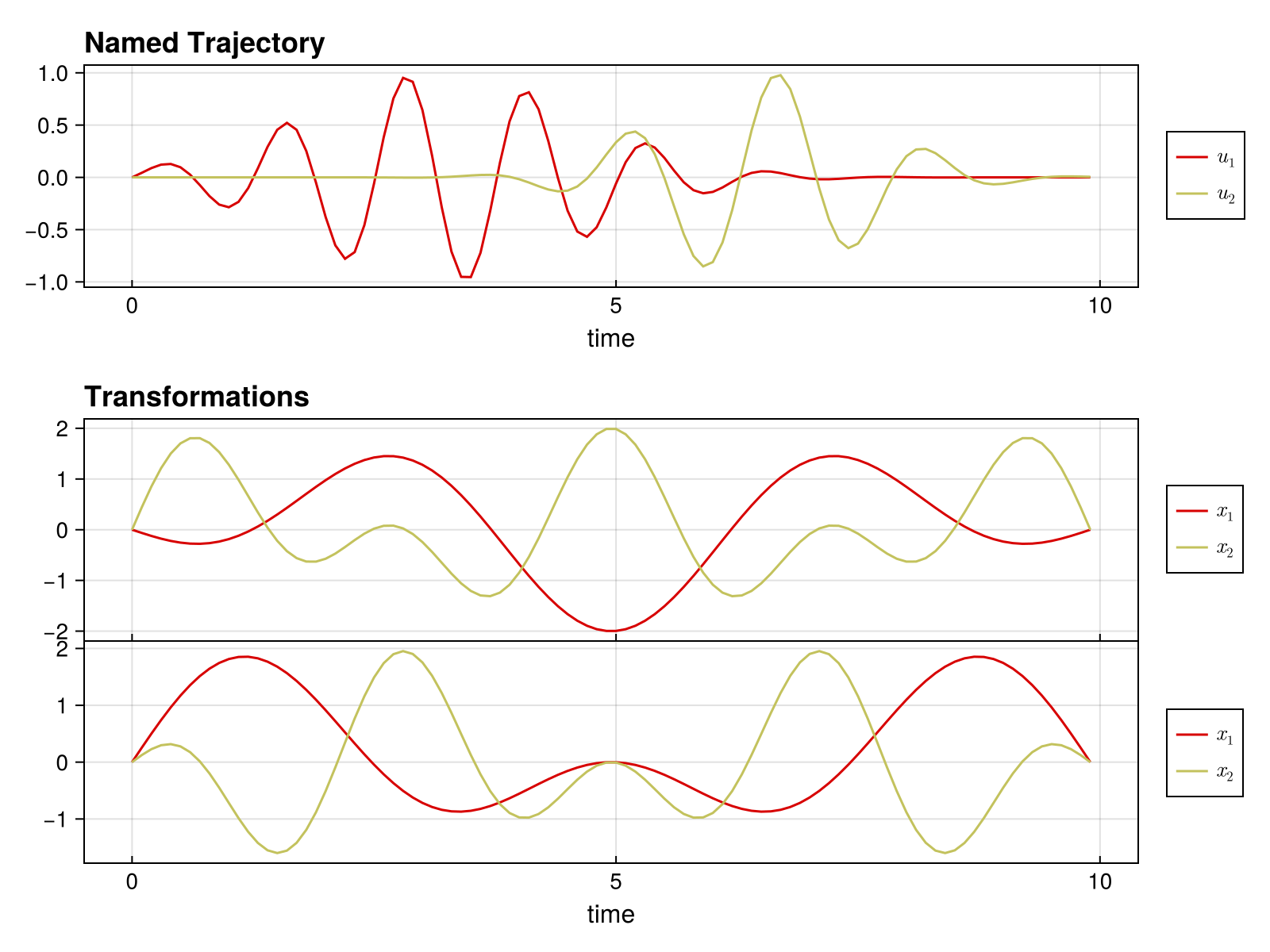

plot(traj, [:u]; transformations=transformations,)
