BangBangPulseProblem

BangBangPulseProblem promotes bang-bang (piecewise-constant, few-switch) controls by penalizing $\|du\|_1$ via an exact slack reformulation. Unlike SmoothPulseProblem (which uses 2 derivative levels with L2 regularization), this stores only 1 derivative (du) and uses slack variables to impose an exact L1 penalty, promoting sparsity in du and thus fewer switches.

When to Use

Use BangBangPulseProblem when:

You want piecewise constant control pulses with minimal switching
You want to promote bang-bang style controls (long constant segments)
You prefer exact L1 regularization over smooth L2 approximations

Comparison with SmoothPulseProblem

	SmoothPulseProblem	BangBangPulseProblem
Derivatives stored	`du`, `ddu`	`du` only
Regularization on `du`	L2 (`QuadraticRegularizer`)	L1 (`LinearRegularizer` on slacks)
Regularization on `u`	L2	L2 (same)
Extra variables	—	slack `s_du ≥ 0`
Extra constraints	—	`L1SlackConstraint`: $\|du\| \leq s$
Bound params	`du_bound`, `ddu_bound`	`du_bound` only

How the L1 Penalty Works

Instead of a smooth approximation, the L1 penalty uses an exact slack reformulation. Slack variables $s \geq 0$ (same dimension as du) are introduced with the constraint:

\[|du_{k,i}| \leq s_{k,i}\]

Then the linear cost $R_{du} \sum_k \sum_i s_{k,i} \Delta t_k$ is minimized. At optimality, $s = |du|$, giving the exact L1 norm.

Pulse Requirement

BangBangPulseProblem requires a trajectory with a ZeroOrderPulse:

pulse = ZeroOrderPulse(controls, times)
qtraj = UnitaryTrajectory(sys, pulse, U_goal)
qcp = BangBangPulseProblem(qtraj, N)  # Works

Using a spline pulse will result in an error directing you to SplinePulseProblem.

Constructor

BangBangPulseProblem(
    qtraj::AbstractQuantumTrajectory{<:ZeroOrderPulse},
    N::Int;
    kwargs...
)

Parameter Reference

Required Parameters

Parameter	Type	Description
`qtraj`	`AbstractQuantumTrajectory{ZeroOrderPulse}`	Quantum trajectory containing system, pulse, and goal
`N`	`Int`	Number of discretization timesteps

Objective Weights

Parameter	Type	Default	Description
`Q`	`Float64`	`100.0`	Weight on infidelity objective. Higher values prioritize achieving target fidelity.
`R`	`Float64`	`1e-2`	Base regularization weight applied to all terms.
`R_u`	`Float64` or `Vector{Float64}`	`0.0`	L2 regularization on control values. Defaults to 0 (no amplitude regularization). Can be per-drive.
`R_du`	`Float64` or `Vector{Float64}`	`R`	L1 weight on first derivative (applied to slacks). Higher values produce fewer switches.

Bounds

Parameter	Type	Default	Description
`du_bound`	`Float64`	`Inf`	Maximum allowed control jump between timesteps.
`Δt_bounds`	`Tuple{Float64, Float64}`	`nothing`	Time-step bounds `(min, max)` for free-time optimization. Required for `MinimumTimeProblem`.

Advanced Options

Parameter	Type	Default	Description
`integrator`	`AbstractIntegrator`	`nothing`	Custom integrator. If `nothing`, uses `BilinearIntegrator`.
`global_names`	`Vector{Symbol}`	`nothing`	Names of global parameters to optimize (requires custom integrator).
`global_bounds`	`Dict{Symbol, ...}`	`nothing`	Bounds on global variables. Values can be `Float64` (symmetric ±) or `Tuple{Float64, Float64}`.
`constraints`	`Vector{AbstractConstraint}`	`[]`	Additional constraints to add to the problem.
`piccolo_options`	`PiccoloOptions`	`PiccoloOptions()`	Solver and leakage options.

Examples

Basic Gate Synthesis

using Piccolo
using CairoMakie

# Define system
H_drift = PAULIS[:Z]
H_drives = [PAULIS[:X], PAULIS[:Y]]
sys = QuantumSystem(H_drift, H_drives, [1.0, 1.0])

# Create trajectory
T, N = 10.0, 100
times = collect(range(0, T, length = N))
pulse = ZeroOrderPulse(0.1 * randn(2, N), times)
qtraj = UnitaryTrajectory(sys, pulse, GATES[:X])

# Solve with L1 regularization on du
qcp = BangBangPulseProblem(qtraj, N; Q = 100.0, R_du = 1.0)
cached_solve!(qcp, "bang_bang_basic"; max_iter = 200)

    constructing BangBangPulseProblem for UnitaryTrajectory...
	applying timesteps_all_equal constraint: Δt
┌ Warning: Trajectory has timestep variable :Δt but no bounds on it.
│ Adding default lower bound of 0 to prevent negative timesteps.
│
│ Recommended: Add explicit bounds when creating the trajectory:
│   NamedTrajectory(...; Δt_bounds=(min, max))
│ Example:
│   NamedTrajectory(qtraj, N; Δt_bounds=(1e-3, 0.5))
│
│ Or use timesteps_all_equal=true in problem options to fix timesteps.
└ @ DirectTrajOpt.Problems ~/.julia/packages/DirectTrajOpt/gTLhf/src/problems.jl:66

******************************************************************************
This program contains Ipopt, a library for large-scale nonlinear optimization.
 Ipopt is released as open source code under the Eclipse Public License (EPL).
         For more information visit https://github.com/coin-or/Ipopt
******************************************************************************

This is Ipopt version 3.14.19, running with linear solver MUMPS 5.8.2.

Number of nonzeros in equality constraint Jacobian...:    32044
Number of nonzeros in inequality constraint Jacobian.:      800
Number of nonzeros in Lagrangian Hessian.............:    38584

Total number of variables............................:     1587
                     variables with only lower bounds:      300
                variables with lower and upper bounds:      988
                     variables with only upper bounds:        0
Total number of equality constraints.................:     1188
Total number of inequality constraints...............:      400
        inequality constraints with only lower bounds:        0
   inequality constraints with lower and upper bounds:        0
        inequality constraints with only upper bounds:      400

iter    objective    inf_pr   inf_du lg(mu)  ||d||  lg(rg) alpha_du alpha_pr  ls
   0  1.1982910e+02 5.56e-02 1.27e+00   0.0 0.00e+00    -  0.00e+00 0.00e+00   0
   1  1.2017587e+02 1.41e-04 7.92e+00  -1.3 5.12e-02   2.0 9.85e-01 1.00e+00f  1
   2  1.1990412e+02 5.07e-06 1.92e+00  -1.4 1.76e-02   1.5 9.46e-01 1.00e+00f  1
   3  1.1784573e+02 1.21e-04 1.34e+00  -1.5 1.26e-01   1.0 9.62e-01 1.00e+00f  1
   4  7.8678373e+01 5.06e-03 1.26e+01  -0.8 1.26e+00   0.6 2.68e-01 3.66e-01f  1
⋮
  42  3.2418217e+00 2.61e-08 1.45e-02  -4.0 2.90e-02    -  1.00e+00 1.00e+00h  1
  43  3.2418216e+00 1.32e-12 8.02e-05  -4.0 1.60e-04    -  1.00e+00 1.00e+00h  1
  44  3.2418216e+00 1.83e-15 1.61e-06  -4.0 3.22e-06    -  1.00e+00 1.00e+00h  1
  45  3.2418216e+00 1.10e-15 8.26e-08  -4.0 1.67e-07    -  1.00e+00 1.00e+00h  1
  46  3.2418216e+00 1.46e-15 4.35e-09  -4.0 9.05e-09    -  1.00e+00 1.00e+00h  1

Number of Iterations....: 46

                                   (scaled)                 (unscaled)
Objective...............:   3.2418215806720534e+00    3.2418215806720534e+00
Dual infeasibility......:   4.3470809183224213e-09    4.3470809183224213e-09
Constraint violation....:   1.4571677198205180e-15    1.4571677198205180e-15
Variable bound violation:   0.0000000000000000e+00    0.0000000000000000e+00
Complementarity.........:   1.0000000000006086e-04    1.0000000000006086e-04
Overall NLP error.......:   4.3470809183224213e-09    4.3470809183224213e-09


Number of objective function evaluations             = 47
Number of objective gradient evaluations             = 47
Number of equality constraint evaluations            = 47
Number of inequality constraint evaluations          = 47
Number of equality constraint Jacobian evaluations   = 47
Number of inequality constraint Jacobian evaluations = 47
Number of Lagrangian Hessian evaluations             = 46
Total seconds in IPOPT                               = 17.252

EXIT: Optimal Solution Found.
    initializing optimizer...
        applying constraint: timesteps all equal constraint
        applying constraint: L1 slack constraint: |du| ≤ s_du
        applying constraint: initial value of Ũ⃗
        applying constraint: initial value of u
        applying constraint: final value of u
        applying constraint: bounds on Ũ⃗
        applying constraint: bounds on u
        applying constraint: bounds on du
        applying constraint: bounds on s_du
        applying constraint: bounds on Δt
        applying constraint: time consistency constraint (t_{k+1} = t_k + Δt_k)
        applying constraint: initial time t₁ = 0
[ Info: Loaded cached trajectory from bang_bang_basic_43c9960.jld2

fidelity(qcp)

0.9998975331396764

Visualize unitary populations

traj = get_trajectory(qcp)

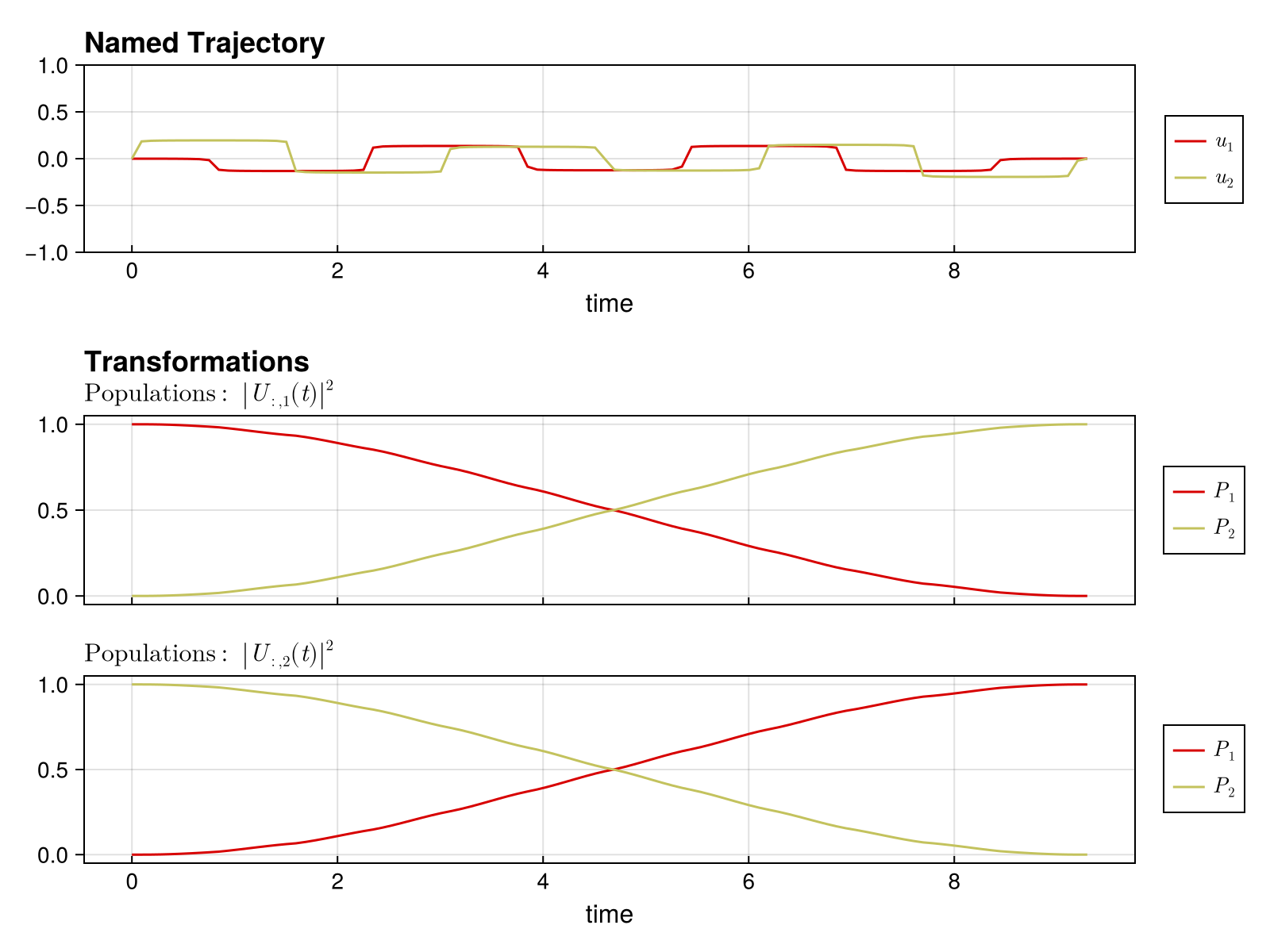

fig = plot_unitary_populations(traj)

Minimum Time

qcp_min = MinimumTimeProblem(qcp, final_fidelity = 0.99)
cached_solve!(qcp_min, "bang_bang_min_time"; max_iter = 300)

    constructing MinimumTimeProblem from QuantumControlProblem{UnitaryTrajectory{ZeroOrderPulse{DataInterpolations.ConstantInterpolation{Matrix{Float64}, Vector{Float64}, Vector{Union{}}, Float64}}, SciMLBase.ODESolution{ComplexF64, 3, Vector{Matrix{ComplexF64}}, Nothing, Nothing, Vector{Float64}, Vector{Vector{Matrix{ComplexF64}}}, Nothing, SciMLBase.ODEProblem{Matrix{ComplexF64}, Tuple{Float64, Float64}, true, SciMLBase.NullParameters, SciMLBase.ODEFunction{true, SciMLBase.FullSpecialize, SciMLOperators.MatrixOperator{ComplexF64, Matrix{ComplexF64}, SciMLOperators.FilterKwargs{Nothing, Val{()}}, SciMLOperators.FilterKwargs{Piccolo.Quantum.Rollouts.var"#update!#_construct_operator##2"{QuantumSystem{Piccolo.Quantum.QuantumSystems.var"#26#27"{SparseArrays.SparseMatrixCSC{ComplexF64, Int64}, Vector{SparseArrays.SparseMatrixCSC{ComplexF64, Int64}}, Int64}, Piccolo.Quantum.QuantumSystems.var"#28#29"{Vector{SparseArrays.SparseMatrixCSC{Float64, Int64}}, Int64, SparseArrays.SparseMatrixCSC{Float64, Int64}}, @NamedTuple{}}}, Val{()}}}, LinearAlgebra.UniformScaling{Bool}, Nothing, Nothing, Nothing, Nothing, Nothing, Nothing, Nothing, Nothing, Nothing, Nothing, Nothing, typeof(SciMLBase.DEFAULT_OBSERVED), Nothing, Piccolo.Quantum.Rollouts.PiccoloRolloutSystem{Union{Int64, AbstractVector{Int64}, CartesianIndex, CartesianIndices}}, Nothing, Nothing}, Base.Pairs{Symbol, Vector{Float64}, Nothing, @NamedTuple{tstops::Vector{Float64}, saveat::Vector{Float64}}}, SciMLBase.StandardODEProblem}, OrdinaryDiffEqLinear.MagnusGL4, OrdinaryDiffEqCore.InterpolationData{SciMLBase.ODEFunction{true, SciMLBase.FullSpecialize, SciMLOperators.MatrixOperator{ComplexF64, Matrix{ComplexF64}, SciMLOperators.FilterKwargs{Nothing, Val{()}}, SciMLOperators.FilterKwargs{Piccolo.Quantum.Rollouts.var"#update!#_construct_operator##2"{QuantumSystem{Piccolo.Quantum.QuantumSystems.var"#26#27"{SparseArrays.SparseMatrixCSC{ComplexF64, Int64}, Vector{SparseArrays.SparseMatrixCSC{ComplexF64, Int64}}, Int64}, Piccolo.Quantum.QuantumSystems.var"#28#29"{Vector{SparseArrays.SparseMatrixCSC{Float64, Int64}}, Int64, SparseArrays.SparseMatrixCSC{Float64, Int64}}, @NamedTuple{}}}, Val{()}}}, LinearAlgebra.UniformScaling{Bool}, Nothing, Nothing, Nothing, Nothing, Nothing, Nothing, Nothing, Nothing, Nothing, Nothing, Nothing, typeof(SciMLBase.DEFAULT_OBSERVED), Nothing, Piccolo.Quantum.Rollouts.PiccoloRolloutSystem{Union{Int64, AbstractVector{Int64}, CartesianIndex, CartesianIndices}}, Nothing, Nothing}, Vector{Matrix{ComplexF64}}, Vector{Float64}, Vector{Vector{Matrix{ComplexF64}}}, Nothing, OrdinaryDiffEqLinear.MagnusGL4Cache{Matrix{ComplexF64}, Matrix{ComplexF64}, Matrix{ComplexF64}, Nothing}, Nothing}, SciMLBase.DEStats, Nothing, Nothing, Nothing, Nothing}, Matrix{ComplexF64}}}...
	final fidelity constraint: 0.99
	minimum-time weight D: 100.0
This is Ipopt version 3.14.19, running with linear solver MUMPS 5.8.2.

Number of nonzeros in equality constraint Jacobian...:    32044
Number of nonzeros in inequality constraint Jacobian.:      808
Number of nonzeros in Lagrangian Hessian.............:    38584

Total number of variables............................:     1587
                     variables with only lower bounds:      300
                variables with lower and upper bounds:      988
                     variables with only upper bounds:        0
Total number of equality constraints.................:     1188
Total number of inequality constraints...............:      401
        inequality constraints with only lower bounds:        0
   inequality constraints with lower and upper bounds:        0
        inequality constraints with only upper bounds:      401

iter    objective    inf_pr   inf_du lg(mu)  ||d||  lg(rg) alpha_du alpha_pr  ls
   0  9.3466811e+02 9.90e-03 1.65e+00   0.0 0.00e+00    -  0.00e+00 0.00e+00   0
   1  9.1269689e+02 3.96e-03 3.53e+00  -4.0 2.55e+00    -  2.29e-01 2.93e-01f  1
   2  9.0173487e+02 1.11e-02 3.70e+00  -4.0 9.50e-01   0.0 1.20e-01 2.01e-01f  1
   3  8.6220156e+02 3.15e-03 2.53e+02  -1.3 5.49e-01   0.4 2.46e-01 9.71e-01f  1
   4  8.0366696e+02 6.95e-03 1.66e+02  -1.4 1.51e+00  -0.1 2.73e-01 3.98e-01f  1
⋮
  67  2.4423265e+02 9.63e-07 1.90e+00  -4.0 3.92e+00    -  1.00e+00 1.00e+00h  1
  68  2.4423246e+02 7.15e-09 2.02e-01  -4.0 4.18e-01    -  1.00e+00 1.00e+00h  1
  69  2.4423246e+02 1.84e-13 9.69e-04  -4.0 2.00e-03    -  1.00e+00 1.00e+00h  1
iter    objective    inf_pr   inf_du lg(mu)  ||d||  lg(rg) alpha_du alpha_pr  ls
  70  2.4423246e+02 2.67e-16 1.15e-07  -4.0 2.40e-07    -  1.00e+00 1.00e+00h  1
  71  2.4423246e+02 2.64e-16 1.00e-09  -4.0 6.44e-12    -  1.00e+00 1.00e+00h  1

Number of Iterations....: 71

                                   (scaled)                 (unscaled)
Objective...............:   2.3635307042079774e+02    2.4423245763408104e+02
Dual infeasibility......:   1.0017716708249358e-09    1.0351680928797638e-09
Constraint violation....:   2.6367796834847468e-16    2.6367796834847468e-16
Variable bound violation:   0.0000000000000000e+00    0.0000000000000000e+00
Complementarity.........:   1.0000000000008403e-04    1.0333373592289716e-04
Overall NLP error.......:   1.0017716708249358e-09    1.0351680928797638e-09


Number of objective function evaluations             = 72
Number of objective gradient evaluations             = 72
Number of equality constraint evaluations            = 72
Number of inequality constraint evaluations          = 72
Number of equality constraint Jacobian evaluations   = 72
Number of inequality constraint Jacobian evaluations = 72
Number of Lagrangian Hessian evaluations             = 71
Total seconds in IPOPT                               = 9.159

EXIT: Optimal Solution Found.
    initializing optimizer...
        applying constraint: timesteps all equal constraint
        applying constraint: L1 slack constraint: |du| ≤ s_du
        applying constraint: initial value of Ũ⃗
        applying constraint: initial value of u
        applying constraint: final value of u
        applying constraint: bounds on Ũ⃗
        applying constraint: bounds on u
        applying constraint: bounds on du
        applying constraint: bounds on s_du
        applying constraint: bounds on Δt
        applying constraint: time consistency constraint (t_{k+1} = t_k + Δt_k)
        applying constraint: initial time t₁ = 0
[ Info: Loaded cached trajectory from bang_bang_min_time_43c9960.jld2

before = get_duration(traj)
after = duration(get_pulse(qcp_min.qtraj))
before - after

6.922172753439191

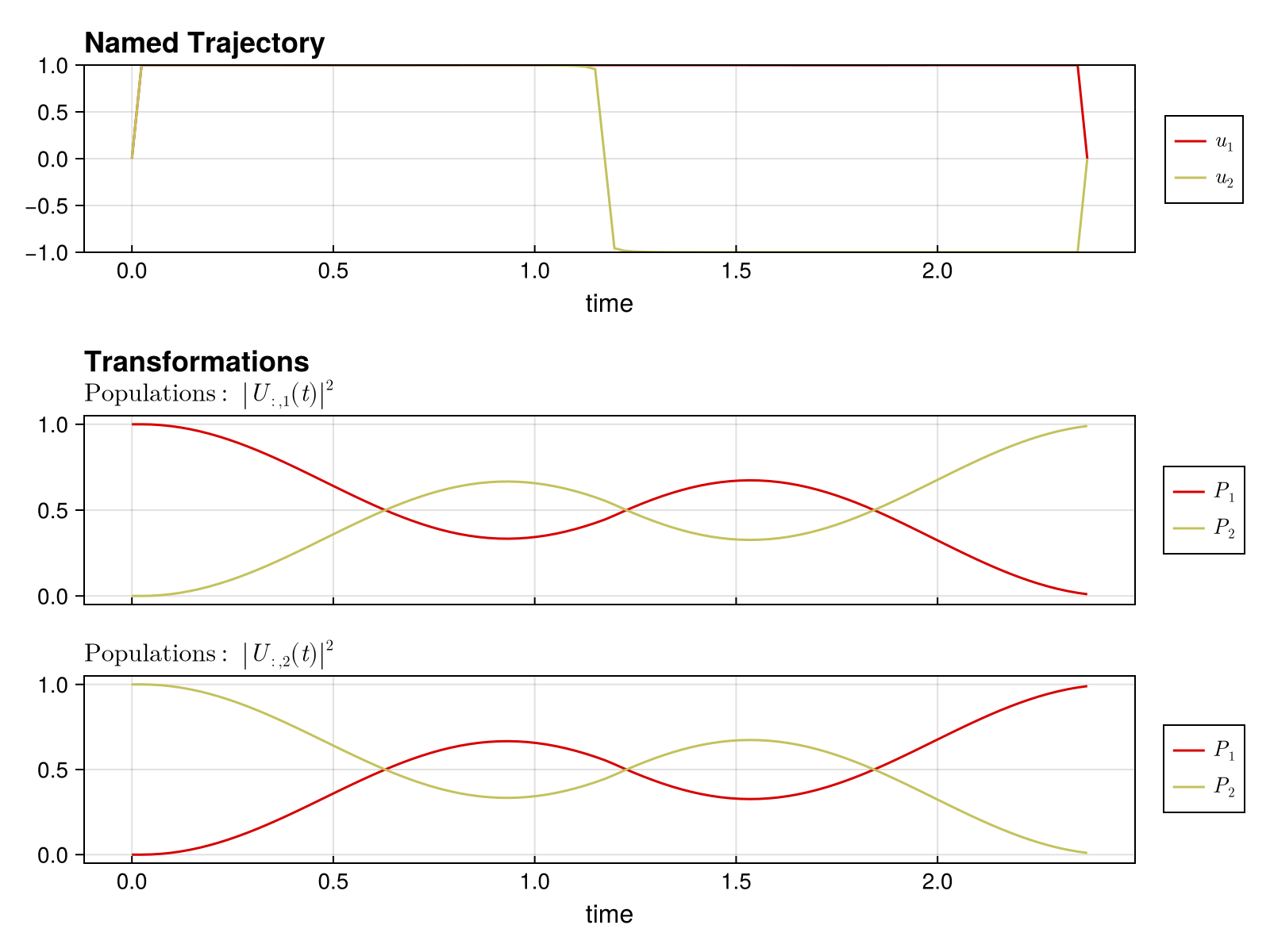

fig = plot_unitary_populations(get_trajectory(qcp_min))

Tuning the L1 Weight

The R_du parameter controls how aggressively switches are penalized. Higher values produce fewer switches (more bang-bang):

qcp = BangBangPulseProblem(
    qtraj,
    N;
    Q = 100.0,
    R_du = 1.0,    ## Strong L1 penalty → fewer switches
)

QuantumControlProblem{UnitaryTrajectory{ZeroOrderPulse{DataInterpolations.ConstantInterpolation{Matrix{Float64}, Vector{Float64}, Vector{Union{}}, Float64}}, SciMLBase.ODESolution{ComplexF64, 3, Vector{Matrix{ComplexF64}}, Nothing, Nothing, Vector{Float64}, Vector{Vector{Matrix{ComplexF64}}}, Nothing, SciMLBase.ODEProblem{Matrix{ComplexF64}, Tuple{Float64, Float64}, true, SciMLBase.NullParameters, SciMLBase.ODEFunction{true, SciMLBase.FullSpecialize, SciMLOperators.MatrixOperator{ComplexF64, Matrix{ComplexF64}, SciMLOperators.FilterKwargs{Nothing, Val{()}}, SciMLOperators.FilterKwargs{Piccolo.Quantum.Rollouts.var"#update!#_construct_operator##2"{QuantumSystem{Piccolo.Quantum.QuantumSystems.var"#26#27"{SparseArrays.SparseMatrixCSC{ComplexF64, Int64}, Vector{SparseArrays.SparseMatrixCSC{ComplexF64, Int64}}, Int64}, Piccolo.Quantum.QuantumSystems.var"#28#29"{Vector{SparseArrays.SparseMatrixCSC{Float64, Int64}}, Int64, SparseArrays.SparseMatrixCSC{Float64, Int64}}, @NamedTuple{}}}, Val{()}}}, LinearAlgebra.UniformScaling{Bool}, Nothing, Nothing, Nothing, Nothing, Nothing, Nothing, Nothing, Nothing, Nothing, Nothing, Nothing, typeof(SciMLBase.DEFAULT_OBSERVED), Nothing, Piccolo.Quantum.Rollouts.PiccoloRolloutSystem{Union{Int64, AbstractVector{Int64}, CartesianIndex, CartesianIndices}}, Nothing, Nothing}, Base.Pairs{Symbol, Vector{Float64}, Nothing, @NamedTuple{tstops::Vector{Float64}, saveat::Vector{Float64}}}, SciMLBase.StandardODEProblem}, OrdinaryDiffEqLinear.MagnusGL4, OrdinaryDiffEqCore.InterpolationData{SciMLBase.ODEFunction{true, SciMLBase.FullSpecialize, SciMLOperators.MatrixOperator{ComplexF64, Matrix{ComplexF64}, SciMLOperators.FilterKwargs{Nothing, Val{()}}, SciMLOperators.FilterKwargs{Piccolo.Quantum.Rollouts.var"#update!#_construct_operator##2"{QuantumSystem{Piccolo.Quantum.QuantumSystems.var"#26#27"{SparseArrays.SparseMatrixCSC{ComplexF64, Int64}, Vector{SparseArrays.SparseMatrixCSC{ComplexF64, Int64}}, Int64}, Piccolo.Quantum.QuantumSystems.var"#28#29"{Vector{SparseArrays.SparseMatrixCSC{Float64, Int64}}, Int64, SparseArrays.SparseMatrixCSC{Float64, Int64}}, @NamedTuple{}}}, Val{()}}}, LinearAlgebra.UniformScaling{Bool}, Nothing, Nothing, Nothing, Nothing, Nothing, Nothing, Nothing, Nothing, Nothing, Nothing, Nothing, typeof(SciMLBase.DEFAULT_OBSERVED), Nothing, Piccolo.Quantum.Rollouts.PiccoloRolloutSystem{Union{Int64, AbstractVector{Int64}, CartesianIndex, CartesianIndices}}, Nothing, Nothing}, Vector{Matrix{ComplexF64}}, Vector{Float64}, Vector{Vector{Matrix{ComplexF64}}}, Nothing, OrdinaryDiffEqLinear.MagnusGL4Cache{Matrix{ComplexF64}, Matrix{ComplexF64}, Matrix{ComplexF64}, Nothing}, Nothing}, SciMLBase.DEStats, Nothing, Nothing, Nothing, Nothing}, Matrix{ComplexF64}}}
  System: QuantumSystem{Piccolo.Quantum.QuantumSystems.var"#26#27"{SparseArrays.SparseMatrixCSC{ComplexF64, Int64}, Vector{SparseArrays.SparseMatrixCSC{ComplexF64, Int64}}, Int64}, Piccolo.Quantum.QuantumSystems.var"#28#29"{Vector{SparseArrays.SparseMatrixCSC{Float64, Int64}}, Int64, SparseArrays.SparseMatrixCSC{Float64, Int64}}, @NamedTuple{}}
  Goal: Matrix{ComplexF64}
  Trajectory: 100 knots
  State: Ũ⃗
  Controls: u

With Derivative Bounds

Constrain the maximum control jump size:

qcp = BangBangPulseProblem(
    qtraj,
    N;
    Q = 100.0,
    R_du = 1e-1,
    du_bound = 0.5,    ## Limit control jumps
)

QuantumControlProblem{UnitaryTrajectory{ZeroOrderPulse{DataInterpolations.ConstantInterpolation{Matrix{Float64}, Vector{Float64}, Vector{Union{}}, Float64}}, SciMLBase.ODESolution{ComplexF64, 3, Vector{Matrix{ComplexF64}}, Nothing, Nothing, Vector{Float64}, Vector{Vector{Matrix{ComplexF64}}}, Nothing, SciMLBase.ODEProblem{Matrix{ComplexF64}, Tuple{Float64, Float64}, true, SciMLBase.NullParameters, SciMLBase.ODEFunction{true, SciMLBase.FullSpecialize, SciMLOperators.MatrixOperator{ComplexF64, Matrix{ComplexF64}, SciMLOperators.FilterKwargs{Nothing, Val{()}}, SciMLOperators.FilterKwargs{Piccolo.Quantum.Rollouts.var"#update!#_construct_operator##2"{QuantumSystem{Piccolo.Quantum.QuantumSystems.var"#26#27"{SparseArrays.SparseMatrixCSC{ComplexF64, Int64}, Vector{SparseArrays.SparseMatrixCSC{ComplexF64, Int64}}, Int64}, Piccolo.Quantum.QuantumSystems.var"#28#29"{Vector{SparseArrays.SparseMatrixCSC{Float64, Int64}}, Int64, SparseArrays.SparseMatrixCSC{Float64, Int64}}, @NamedTuple{}}}, Val{()}}}, LinearAlgebra.UniformScaling{Bool}, Nothing, Nothing, Nothing, Nothing, Nothing, Nothing, Nothing, Nothing, Nothing, Nothing, Nothing, typeof(SciMLBase.DEFAULT_OBSERVED), Nothing, Piccolo.Quantum.Rollouts.PiccoloRolloutSystem{Union{Int64, AbstractVector{Int64}, CartesianIndex, CartesianIndices}}, Nothing, Nothing}, Base.Pairs{Symbol, Vector{Float64}, Nothing, @NamedTuple{tstops::Vector{Float64}, saveat::Vector{Float64}}}, SciMLBase.StandardODEProblem}, OrdinaryDiffEqLinear.MagnusGL4, OrdinaryDiffEqCore.InterpolationData{SciMLBase.ODEFunction{true, SciMLBase.FullSpecialize, SciMLOperators.MatrixOperator{ComplexF64, Matrix{ComplexF64}, SciMLOperators.FilterKwargs{Nothing, Val{()}}, SciMLOperators.FilterKwargs{Piccolo.Quantum.Rollouts.var"#update!#_construct_operator##2"{QuantumSystem{Piccolo.Quantum.QuantumSystems.var"#26#27"{SparseArrays.SparseMatrixCSC{ComplexF64, Int64}, Vector{SparseArrays.SparseMatrixCSC{ComplexF64, Int64}}, Int64}, Piccolo.Quantum.QuantumSystems.var"#28#29"{Vector{SparseArrays.SparseMatrixCSC{Float64, Int64}}, Int64, SparseArrays.SparseMatrixCSC{Float64, Int64}}, @NamedTuple{}}}, Val{()}}}, LinearAlgebra.UniformScaling{Bool}, Nothing, Nothing, Nothing, Nothing, Nothing, Nothing, Nothing, Nothing, Nothing, Nothing, Nothing, typeof(SciMLBase.DEFAULT_OBSERVED), Nothing, Piccolo.Quantum.Rollouts.PiccoloRolloutSystem{Union{Int64, AbstractVector{Int64}, CartesianIndex, CartesianIndices}}, Nothing, Nothing}, Vector{Matrix{ComplexF64}}, Vector{Float64}, Vector{Vector{Matrix{ComplexF64}}}, Nothing, OrdinaryDiffEqLinear.MagnusGL4Cache{Matrix{ComplexF64}, Matrix{ComplexF64}, Matrix{ComplexF64}, Nothing}, Nothing}, SciMLBase.DEStats, Nothing, Nothing, Nothing, Nothing}, Matrix{ComplexF64}}}
  System: QuantumSystem{Piccolo.Quantum.QuantumSystems.var"#26#27"{SparseArrays.SparseMatrixCSC{ComplexF64, Int64}, Vector{SparseArrays.SparseMatrixCSC{ComplexF64, Int64}}, Int64}, Piccolo.Quantum.QuantumSystems.var"#28#29"{Vector{SparseArrays.SparseMatrixCSC{Float64, Int64}}, Int64, SparseArrays.SparseMatrixCSC{Float64, Int64}}, @NamedTuple{}}
  Goal: Matrix{ComplexF64}
  Trajectory: 100 knots
  State: Ũ⃗
  Controls: u

Per-Drive Regularization

Apply different L1 weights to different control channels:

qcp = BangBangPulseProblem(
    qtraj,
    N;
    Q = 100.0,
    R_u = [1e-3, 1e-2],     ## Less L2 regularization on drive 1
    R_du = [1e-1, 1.0],     ## Stronger L1 on drive 2
)

QuantumControlProblem{UnitaryTrajectory{ZeroOrderPulse{DataInterpolations.ConstantInterpolation{Matrix{Float64}, Vector{Float64}, Vector{Union{}}, Float64}}, SciMLBase.ODESolution{ComplexF64, 3, Vector{Matrix{ComplexF64}}, Nothing, Nothing, Vector{Float64}, Vector{Vector{Matrix{ComplexF64}}}, Nothing, SciMLBase.ODEProblem{Matrix{ComplexF64}, Tuple{Float64, Float64}, true, SciMLBase.NullParameters, SciMLBase.ODEFunction{true, SciMLBase.FullSpecialize, SciMLOperators.MatrixOperator{ComplexF64, Matrix{ComplexF64}, SciMLOperators.FilterKwargs{Nothing, Val{()}}, SciMLOperators.FilterKwargs{Piccolo.Quantum.Rollouts.var"#update!#_construct_operator##2"{QuantumSystem{Piccolo.Quantum.QuantumSystems.var"#26#27"{SparseArrays.SparseMatrixCSC{ComplexF64, Int64}, Vector{SparseArrays.SparseMatrixCSC{ComplexF64, Int64}}, Int64}, Piccolo.Quantum.QuantumSystems.var"#28#29"{Vector{SparseArrays.SparseMatrixCSC{Float64, Int64}}, Int64, SparseArrays.SparseMatrixCSC{Float64, Int64}}, @NamedTuple{}}}, Val{()}}}, LinearAlgebra.UniformScaling{Bool}, Nothing, Nothing, Nothing, Nothing, Nothing, Nothing, Nothing, Nothing, Nothing, Nothing, Nothing, typeof(SciMLBase.DEFAULT_OBSERVED), Nothing, Piccolo.Quantum.Rollouts.PiccoloRolloutSystem{Union{Int64, AbstractVector{Int64}, CartesianIndex, CartesianIndices}}, Nothing, Nothing}, Base.Pairs{Symbol, Vector{Float64}, Nothing, @NamedTuple{tstops::Vector{Float64}, saveat::Vector{Float64}}}, SciMLBase.StandardODEProblem}, OrdinaryDiffEqLinear.MagnusGL4, OrdinaryDiffEqCore.InterpolationData{SciMLBase.ODEFunction{true, SciMLBase.FullSpecialize, SciMLOperators.MatrixOperator{ComplexF64, Matrix{ComplexF64}, SciMLOperators.FilterKwargs{Nothing, Val{()}}, SciMLOperators.FilterKwargs{Piccolo.Quantum.Rollouts.var"#update!#_construct_operator##2"{QuantumSystem{Piccolo.Quantum.QuantumSystems.var"#26#27"{SparseArrays.SparseMatrixCSC{ComplexF64, Int64}, Vector{SparseArrays.SparseMatrixCSC{ComplexF64, Int64}}, Int64}, Piccolo.Quantum.QuantumSystems.var"#28#29"{Vector{SparseArrays.SparseMatrixCSC{Float64, Int64}}, Int64, SparseArrays.SparseMatrixCSC{Float64, Int64}}, @NamedTuple{}}}, Val{()}}}, LinearAlgebra.UniformScaling{Bool}, Nothing, Nothing, Nothing, Nothing, Nothing, Nothing, Nothing, Nothing, Nothing, Nothing, Nothing, typeof(SciMLBase.DEFAULT_OBSERVED), Nothing, Piccolo.Quantum.Rollouts.PiccoloRolloutSystem{Union{Int64, AbstractVector{Int64}, CartesianIndex, CartesianIndices}}, Nothing, Nothing}, Vector{Matrix{ComplexF64}}, Vector{Float64}, Vector{Vector{Matrix{ComplexF64}}}, Nothing, OrdinaryDiffEqLinear.MagnusGL4Cache{Matrix{ComplexF64}, Matrix{ComplexF64}, Matrix{ComplexF64}, Nothing}, Nothing}, SciMLBase.DEStats, Nothing, Nothing, Nothing, Nothing}, Matrix{ComplexF64}}}
  System: QuantumSystem{Piccolo.Quantum.QuantumSystems.var"#26#27"{SparseArrays.SparseMatrixCSC{ComplexF64, Int64}, Vector{SparseArrays.SparseMatrixCSC{ComplexF64, Int64}}, Int64}, Piccolo.Quantum.QuantumSystems.var"#28#29"{Vector{SparseArrays.SparseMatrixCSC{Float64, Int64}}, Int64, SparseArrays.SparseMatrixCSC{Float64, Int64}}, @NamedTuple{}}
  Goal: Matrix{ComplexF64}
  Trajectory: 100 knots
  State: Ũ⃗
  Controls: u

State Transfer

ψ_init = ComplexF64[1, 0]  ## |0⟩
ψ_goal = ComplexF64[0, 1]  ## |1⟩

pulse = ZeroOrderPulse(0.1 * randn(2, N), times)
qtraj = KetTrajectory(sys, pulse, ψ_init, ψ_goal)

qcp = BangBangPulseProblem(qtraj, N; Q = 100.0, R_du = 1.0)
cached_solve!(qcp, "bang_bang_state_transfer"; max_iter = 100)

    constructing BangBangPulseProblem for KetTrajectory...
	applying timesteps_all_equal constraint: Δt
┌ Warning: Trajectory has timestep variable :Δt but no bounds on it.
│ Adding default lower bound of 0 to prevent negative timesteps.
│
│ Recommended: Add explicit bounds when creating the trajectory:
│   NamedTrajectory(...; Δt_bounds=(min, max))
│ Example:
│   NamedTrajectory(qtraj, N; Δt_bounds=(1e-3, 0.5))
│
│ Or use timesteps_all_equal=true in problem options to fix timesteps.
└ @ DirectTrajOpt.Problems ~/.julia/packages/DirectTrajOpt/gTLhf/src/problems.jl:66
This is Ipopt version 3.14.19, running with linear solver MUMPS 5.8.2.

Number of nonzeros in equality constraint Jacobian...:    14696
Number of nonzeros in inequality constraint Jacobian.:      800
Number of nonzeros in Lagrangian Hessian.............:    21862

Total number of variables............................:     1191
                     variables with only lower bounds:      300
                variables with lower and upper bounds:      592
                     variables with only upper bounds:        0
Total number of equality constraints.................:      792
Total number of inequality constraints...............:      400
        inequality constraints with only lower bounds:        0
   inequality constraints with lower and upper bounds:        0
        inequality constraints with only upper bounds:      400

iter    objective    inf_pr   inf_du lg(mu)  ||d||  lg(rg) alpha_du alpha_pr  ls
   0  1.1195048e+02 1.96e-01 1.80e+00   0.0 0.00e+00    -  0.00e+00 0.00e+00   0
   1  1.1020739e+02 7.07e-02 2.38e+01  -0.9 1.83e-01   2.0 9.30e-01 6.39e-01f  1
   2  1.0550439e+02 4.69e-04 1.25e+01  -0.7 7.48e-02   1.5 9.81e-01 1.00e+00f  1
   3  8.2050156e+01 1.29e-03 7.78e+00  -0.7 2.36e-01   1.0 7.23e-01 1.00e+00f  1
   4  2.6132752e+01 4.26e-03 3.84e+02  -0.8 5.52e-01   0.6 5.98e-01 6.84e-01f  1
⋮
  96  1.0141346e+01 1.15e-05 2.64e-01  -4.0 3.73e-01  -0.9 1.00e+00 2.32e-01f  1
  97  9.7367060e+00 2.42e-05 2.91e+02  -3.7 1.11e+00  -1.4 1.00e+00 1.22e-01f  1
  98  9.0073341e+00 1.70e-04 3.33e+01  -2.7 3.06e+00  -1.8 8.32e-01 1.14e-01f  1
  99  8.9369477e+00 4.15e-07 1.13e-01  -4.0 1.90e-02   0.4 1.00e+00 1.00e+00h  1
iter    objective    inf_pr   inf_du lg(mu)  ||d||  lg(rg) alpha_du alpha_pr  ls
 100  8.7780124e+00 1.50e-06 5.50e-02  -4.0 5.84e-02  -0.1 1.00e+00 8.50e-01f  1

Number of Iterations....: 100

                                   (scaled)                 (unscaled)
Objective...............:   8.7780124132994928e+00    8.7780124132994928e+00
Dual infeasibility......:   5.5021038885013897e-02    5.5021038885013897e-02
Constraint violation....:   1.4963190144968129e-06    1.4963190144968129e-06
Variable bound violation:   0.0000000000000000e+00    0.0000000000000000e+00
Complementarity.........:   1.4939958657379462e-04    1.4939958657379462e-04
Overall NLP error.......:   5.5021038885013897e-02    5.5021038885013897e-02


Number of objective function evaluations             = 102
Number of objective gradient evaluations             = 101
Number of equality constraint evaluations            = 102
Number of inequality constraint evaluations          = 102
Number of equality constraint Jacobian evaluations   = 101
Number of inequality constraint Jacobian evaluations = 101
Number of Lagrangian Hessian evaluations             = 100
Total seconds in IPOPT                               = 12.687

EXIT: Maximum Number of Iterations Exceeded.
    initializing optimizer...
        applying constraint: timesteps all equal constraint
        applying constraint: L1 slack constraint: |du| ≤ s_du
        applying constraint: initial value of ψ̃
        applying constraint: initial value of u
        applying constraint: final value of u
        applying constraint: bounds on ψ̃
        applying constraint: bounds on u
        applying constraint: bounds on du
        applying constraint: bounds on s_du
        applying constraint: bounds on Δt
        applying constraint: time consistency constraint (t_{k+1} = t_k + Δt_k)
        applying constraint: initial time t₁ = 0
[ Info: Loaded cached trajectory from bang_bang_state_transfer_43c9960.jld2

Multiple State Transfers

Use MultiKetTrajectory for gates defined by state mappings:

ψ0, ψ1 = ComplexF64[1, 0], ComplexF64[0, 1]

# X gate: |0⟩ → |1⟩ and |1⟩ → |0⟩
pulse = ZeroOrderPulse(0.1 * randn(2, N), times)
qtraj = MultiKetTrajectory(sys, pulse, [ψ0, ψ1], [ψ1, ψ0])

qcp = BangBangPulseProblem(qtraj, N; Q = 100.0, R_du = 1.0)
cached_solve!(qcp, "bang_bang_multi_ket"; max_iter = 100)

    constructing BangBangPulseProblem for MultiKetTrajectory (2 states)...
	applying timesteps_all_equal constraint: Δt
┌ Warning: Trajectory has timestep variable :Δt but no bounds on it.
│ Adding default lower bound of 0 to prevent negative timesteps.
│
│ Recommended: Add explicit bounds when creating the trajectory:
│   NamedTrajectory(...; Δt_bounds=(min, max))
│ Example:
│   NamedTrajectory(qtraj, N; Δt_bounds=(1e-3, 0.5))
│
│ Or use timesteps_all_equal=true in problem options to fix timesteps.
└ @ DirectTrajOpt.Problems ~/.julia/packages/DirectTrajOpt/gTLhf/src/problems.jl:66
This is Ipopt version 3.14.19, running with linear solver MUMPS 5.8.2.

Number of nonzeros in equality constraint Jacobian...:    32044
Number of nonzeros in inequality constraint Jacobian.:      800
Number of nonzeros in Lagrangian Hessian.............:    38584

Total number of variables............................:     1587
                     variables with only lower bounds:      300
                variables with lower and upper bounds:      988
                     variables with only upper bounds:        0
Total number of equality constraints.................:     1188
Total number of inequality constraints...............:      400
        inequality constraints with only lower bounds:        0
   inequality constraints with lower and upper bounds:        0
        inequality constraints with only upper bounds:      400

iter    objective    inf_pr   inf_du lg(mu)  ||d||  lg(rg) alpha_du alpha_pr  ls
   0  1.2415350e+02 1.21e-01 1.22e+00   0.0 0.00e+00    -  0.00e+00 0.00e+00   0
   1  1.2433806e+02 7.79e-02 1.40e+01  -0.9 1.46e-01   2.0 9.91e-01 3.56e-01f  1
   2  1.2428881e+02 2.91e-04 1.47e+01  -0.6 1.68e-01   1.5 1.00e+00 1.00e+00f  1
   3  1.2162207e+02 1.66e-04 7.89e+00  -1.1 8.71e-02   1.0 8.98e-01 1.00e+00f  1
   4  3.1028769e+01 1.59e-02 4.58e+01  -0.4 1.36e+00   0.6 5.51e-01 5.71e-01f  1
⋮
  96  3.3005075e+00 5.03e-10 1.75e-03  -4.1 3.50e-03    -  1.00e+00 1.00e+00h  1
  97  3.3119512e+00 8.81e-06 2.98e-01  -4.0 5.99e-01    -  1.00e+00 1.00e+00f  1
  98  3.3004798e+00 1.43e-05 3.16e-01  -4.1 6.34e-01    -  1.00e+00 1.00e+00h  1
  99  3.3005148e+00 1.17e-06 8.52e-02  -4.1 1.70e-01    -  1.00e+00 1.00e+00h  1
iter    objective    inf_pr   inf_du lg(mu)  ||d||  lg(rg) alpha_du alpha_pr  ls
 100  3.3005083e+00 8.36e-09 5.34e-03  -4.1 1.07e-02    -  1.00e+00 1.00e+00h  1

Number of Iterations....: 100

                                   (scaled)                 (unscaled)
Objective...............:   3.3005082649344404e+00    3.3005082649344404e+00
Dual infeasibility......:   5.3405531927499883e-03    5.3405531927499883e-03
Constraint violation....:   8.3626945646120276e-09    8.3626945646120276e-09
Variable bound violation:   0.0000000000000000e+00    0.0000000000000000e+00
Complementarity.........:   7.9998953223595626e-05    7.9998953223595626e-05
Overall NLP error.......:   5.3405531927499883e-03    5.3405531927499883e-03


Number of objective function evaluations             = 131
Number of objective gradient evaluations             = 101
Number of equality constraint evaluations            = 131
Number of inequality constraint evaluations          = 131
Number of equality constraint Jacobian evaluations   = 101
Number of inequality constraint Jacobian evaluations = 101
Number of Lagrangian Hessian evaluations             = 100
Total seconds in IPOPT                               = 22.596

EXIT: Maximum Number of Iterations Exceeded.
    initializing optimizer...
        applying constraint: timesteps all equal constraint
        applying constraint: L1 slack constraint: |du| ≤ s_du
        applying constraint: initial value of ψ̃1
        applying constraint: initial value of ψ̃2
        applying constraint: initial value of u
        applying constraint: final value of u
        applying constraint: bounds on ψ̃1
        applying constraint: bounds on ψ̃2
        applying constraint: bounds on u
        applying constraint: bounds on du
        applying constraint: bounds on s_du
        applying constraint: bounds on Δt
        applying constraint: time consistency constraint (t_{k+1} = t_k + Δt_k)
        applying constraint: initial time t₁ = 0
[ Info: Loaded cached trajectory from bang_bang_multi_ket_43c9960.jld2

How It Works

BangBangPulseProblem internally:

Adds 1 derivative variable: Creates :du (first derivative) alongside controls :u (compared to 2 in SmoothPulseProblem)
Adds slack variables: Creates :s_du (non-negative, same dimension as :du), initialized at |du|
Sets up integrators: Uses DerivativeIntegrator to enforce:
- du[k] = (u[k+1] - u[k]) / Δt
Configures objectives:
- Infidelity objective with weight Q
- Quadratic (L2) regularization on u with weight R_u
- Linear (L1) regularization on s_du with weight R_du
Applies constraints: L1SlackConstraint enforces |du| ≤ s_du, and du_bound as hard constraints

At optimality the slacks satisfy s = |du|, so the linear cost on s equals the exact L1 norm of du.
