Robust Control

This tutorial shows how to design control pulses that are robust to parameter uncertainty using SamplingProblem.

The Problem

Real quantum systems have parameter uncertainty:

• Qubit frequencies drift over time
• Fabrication variations between devices
• Calibration errors

A pulse optimized for nominal parameters may perform poorly when parameters vary. SamplingProblem optimizes for multiple parameter values simultaneously.

using Piccolo
using CairoMakie
using Random
Random.seed!(456)

Random.TaskLocalRNG()

Setup: Nominal System

# Nominal qubit frequency
ω_nominal = 0.5

H_drift = ω_nominal * PAULIS[:Z]
H_drives = [PAULIS[:X], PAULIS[:Y]]
drive_bounds = [1.0, 1.0]

sys_nominal = QuantumSystem(H_drift, H_drives, drive_bounds)

# Time parameters
T, N = 10.0, 100
times = collect(range(0, T, length = N))

# Target gate
U_goal = GATES[:X]

2×2 Matrix{ComplexF64}:
 0.0+0.0im  1.0+0.0im
 1.0+0.0im  0.0+0.0im

Step 1: Optimize for Nominal Parameters Only

pulse_nom = ZeroOrderPulse(0.1 * randn(2, N), times)
qtraj_nom = UnitaryTrajectory(sys_nominal, pulse_nom, U_goal)

qcp_nom = SmoothPulseProblem(qtraj_nom, N; Q = 100.0, R = 1e-2)
cached_solve!(qcp_nom, "robust_nominal"; max_iter = 20, verbose = false, print_level = 1)

fidelity(qcp_nom)

0.999990477248649

Step 2: Test Robustness

Let's see how this pulse performs with ±10% frequency variation:

function evaluate_fidelity(qcp, ω_test)
    # Create test system with different frequency
    H_test = ω_test * PAULIS[:Z]
    sys_test = QuantumSystem(H_test, H_drives, drive_bounds)

    # Get optimized pulse
    pulse_opt = get_pulse(qcp.qtraj)

    # Create trajectory and evaluate
    qtraj_test = UnitaryTrajectory(sys_test, pulse_opt, U_goal)
    return fidelity(qtraj_test)
end

# Test across frequency range
ω_range = range(0.9 * ω_nominal, 1.1 * ω_nominal, length = 21)
fidelities_nom = [evaluate_fidelity(qcp_nom, ω) for ω in ω_range]

extrema(fidelities_nom)

(0.8708456097332563, 0.999990477248649)

Step 3: Robust Optimization with SamplingProblem

Now let's optimize for multiple frequency values simultaneously.

# Create perturbed systems (±5% and ±10%)
ω_samples = [0.9, 0.95, 1.0, 1.05, 1.1] .* ω_nominal
systems = [QuantumSystem(ω * PAULIS[:Z], H_drives, drive_bounds) for ω in ω_samples]

# Optimize for all frequency samples

# Start from the nominal solution
qcp_robust = SamplingProblem(qcp_nom, systems; Q = 100.0)
cached_solve!(
    qcp_robust,
    "robust_sampling";
    max_iter = 20,
    verbose = false,
    print_level = 1,
)

fidelity(qcp_robust)

5-element Vector{Float64}:
 0.9844847497538942
 0.9935336889710623
 0.9979357534580573
 0.9986953855956474
 0.9957220765539823

Step 4: Compare Performance

# Evaluate robust pulse
fidelities_robust = Float64[]
for ω in ω_range
    H_test = ω * PAULIS[:Z]
    sys_test = QuantumSystem(H_test, H_drives, drive_bounds)
    pulse_robust = get_pulse(qcp_robust.qtraj)
    qtraj_test = UnitaryTrajectory(sys_test, pulse_robust, U_goal)
    push!(fidelities_robust, fidelity(qtraj_test))
end

extrema(fidelities_robust)

(0.9844847497538942, 0.9988223102507504)

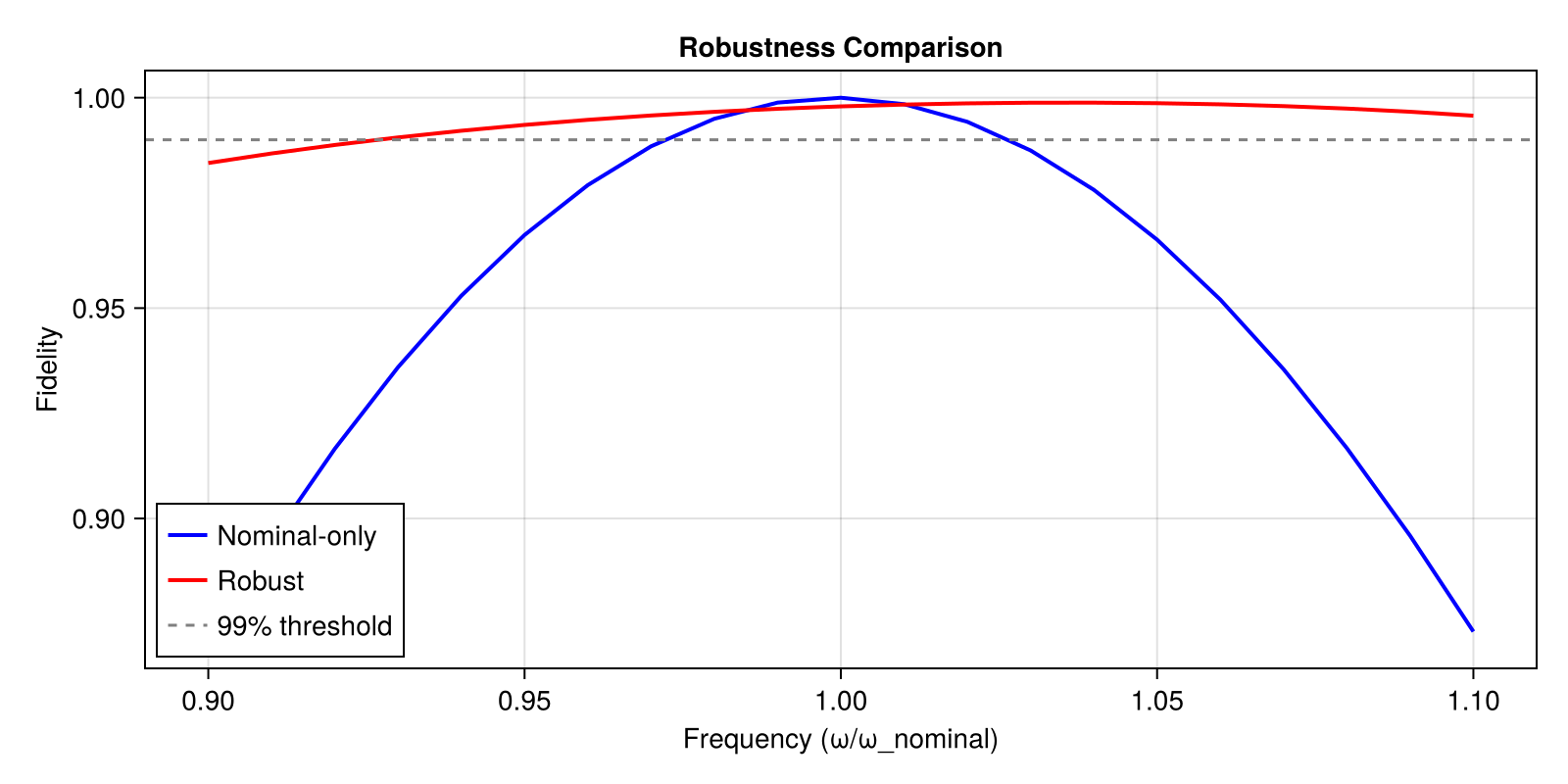

Step 5: Visualize Comparison

fig = Figure(size = (800, 400))

ax = Axis(
    fig[1, 1],
    xlabel = "Frequency (ω/ω_nominal)",
    ylabel = "Fidelity",
    title = "Robustness Comparison",
)

lines!(
    ax,
    ω_range ./ ω_nominal,
    fidelities_nom,
    label = "Nominal-only",
    linewidth = 2,
    color = :blue,
)
lines!(
    ax,
    ω_range ./ ω_nominal,
    fidelities_robust,
    label = "Robust",
    linewidth = 2,
    color = :red,
)

hlines!(ax, [0.99], linestyle = :dash, color = :gray, label = "99% threshold")

axislegend(ax, position = :lb)

fig

Step 6: Combine with Time Optimization

We can chain SamplingProblem with MinimumTimeProblem for robust AND time-optimal pulses.

# First, create base problem with free time
pulse_free = ZeroOrderPulse(0.1 * randn(2, N), times)
qtraj_free = UnitaryTrajectory(sys_nominal, pulse_free, U_goal)

qcp_free = SmoothPulseProblem(
    qtraj_free,
    N;
    Q = 100.0,
    R = 1e-2,
    Δt_bounds = (0.05, 0.3),  # Enable variable timesteps
)
cached_solve!(qcp_free, "robust_free_time"; max_iter = 15, verbose = false, print_level = 1)

# Add robustness
qcp_robust_free = SamplingProblem(qcp_free, systems; Q = 100.0)
cached_solve!(
    qcp_robust_free,
    "robust_free_sampling";
    max_iter = 15,
    verbose = false,
    print_level = 1,
)

# Minimize time while maintaining fidelity
qcp_fast_robust = MinimumTimeProblem(qcp_robust_free; final_fidelity = 0.95, D = 100.0)
cached_solve!(
    qcp_fast_robust,
    "robust_fast_mintime";
    max_iter = 15,
    verbose = false,
    print_level = 1,
)

# Compare durations
duration_initial = sum(get_timesteps(get_trajectory(qcp_free)))
duration_robust = sum(get_timesteps(get_trajectory(qcp_robust_free)))
duration_fast = sum(get_timesteps(get_trajectory(qcp_fast_robust)))

duration_initial, duration_robust, duration_fast

(10.389225839437566, 9.639544722323116, 8.325470883383534)

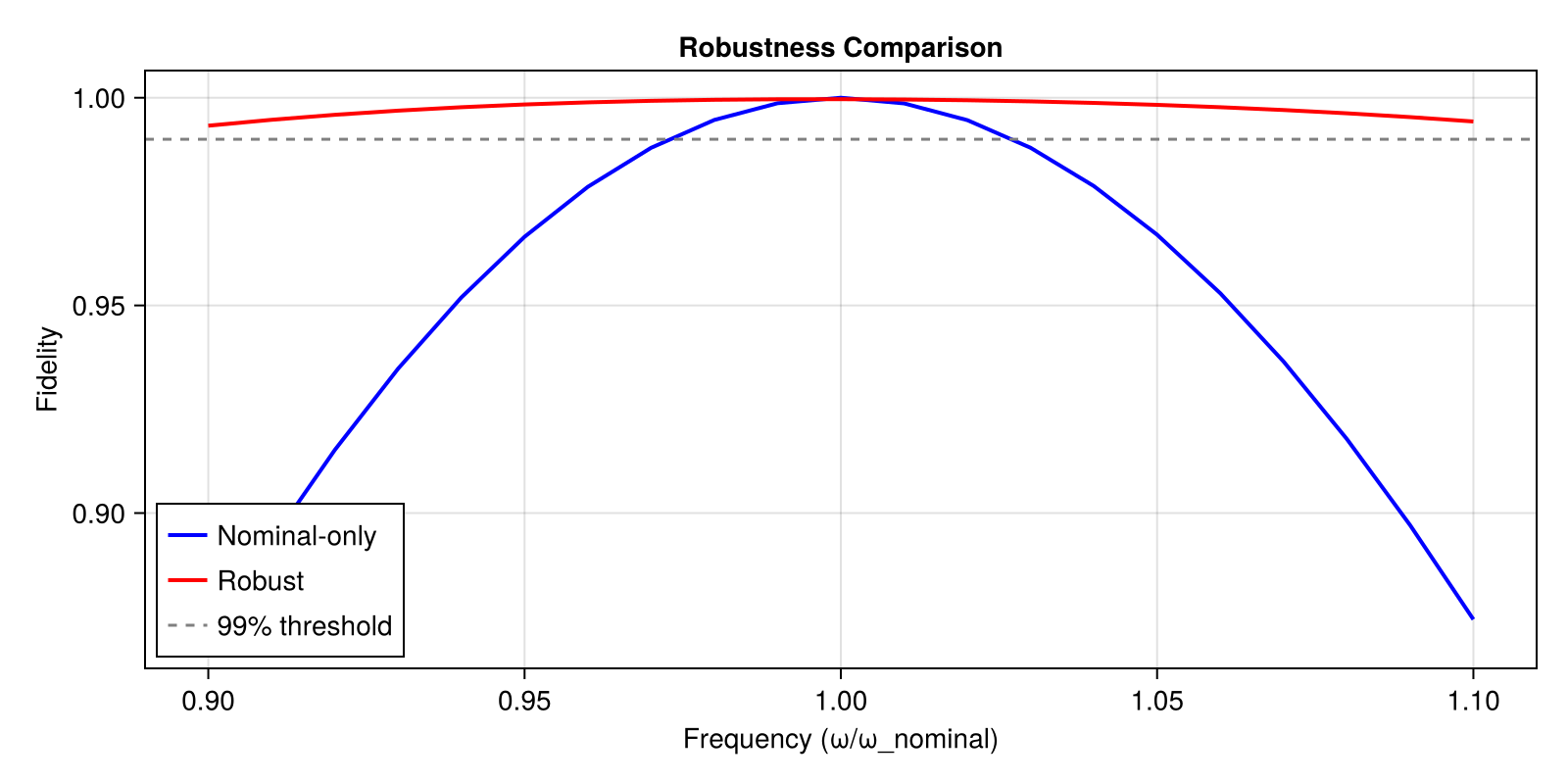

Weighted Sampling

You can weight some parameter values more heavily:

# More weight on nominal, less on extremes
weights = [0.5, 1.0, 2.0, 1.0, 0.5]  # Emphasize nominal

qcp_weighted = SamplingProblem(qcp_nom, systems; weights = weights, Q = 100.0)
cached_solve!(
    qcp_weighted,
    "robust_weighted";
    max_iter = 15,
    verbose = false,
    print_level = 1,
)

# Evaluate
fidelities_weighted = Float64[]
for ω in ω_range
    H_test = ω * PAULIS[:Z]
    sys_test = QuantumSystem(H_test, H_drives, drive_bounds)
    pulse_w = get_pulse(qcp_weighted.qtraj)
    qtraj_test = UnitaryTrajectory(sys_test, pulse_w, U_goal)
    push!(fidelities_weighted, fidelity(qtraj_test))
end

extrema(fidelities_weighted)

(0.997761537942937, 0.9994828368548555)

Best Practices

1. Start with nominal optimization - Get a working solution first
2. Sample key parameters - Focus on parameters with most uncertainty
3. Use 3-5 samples initially - More samples = slower optimization
4. Verify with dense evaluation - Test on more points than you optimized for
5. Balance robustness and performance - More robust often means longer gates

Next Steps

• Problem Templates: Full SamplingProblem documentation
• MinimumTimeProblem: Time optimization details
• Composing Templates: Advanced composition patterns
