Quickstart

This quickstart guide will help you get up and running with PiccoloQuantumObjects.jl.

Installation

using Pkg
Pkg.add("PiccoloQuantumObjects")

Basic Usage

using PiccoloQuantumObjects
using LinearAlgebra
using SparseArrays
using NamedTrajectories

Creating a Quantum System

Define Hamiltonian components

H_drift = PAULIS[:Z]
H_drives = [PAULIS[:X], PAULIS[:Y]]
2-element Vector{Matrix{ComplexF64}}:
 [0.0 + 0.0im 1.0 + 0.0im; 1.0 + 0.0im 0.0 + 0.0im]
 [0.0 + 0.0im 0.0 - 1.0im; 0.0 + 1.0im 0.0 + 0.0im]

Specify time and control bounds

T_max = 10.0  # Maximum evolution time
drive_bounds = [(-1.0, 1.0), (-1.0, 1.0)]  # Control bounds for each drive
2-element Vector{Tuple{Float64, Float64}}:
 (-1.0, 1.0)
 (-1.0, 1.0)

Create the quantum system

system = QuantumSystem(H_drift, H_drives, T_max, drive_bounds)
QuantumSystem: levels = 2, n_drives = 2

Working with Quantum States

Create quantum states

ψ_ground = ket_from_string("g", [2])  # Ground state
2-element Vector{ComplexF64}:
 1.0 + 0.0im
 0.0 + 0.0im
ψ_excited = ket_from_string("e", [2])  # Excited state
2-element Vector{ComplexF64}:
 0.0 + 0.0im
 1.0 + 0.0im

Calculate fidelity

fidelity(ψ_ground, ψ_excited)
0.0

Simulating Evolution (Rollouts)

Initial state

ψ_init = ComplexF64[1.0, 0.0]
2-element Vector{ComplexF64}:
 1.0 + 0.0im
 0.0 + 0.0im

Define control sequence

T = 10  # Number of time steps
controls = rand(2, T)  # Random controls for two drives
Δt = fill(0.1, T)  # Time step duration
10-element Vector{Float64}:
 0.1
 0.1
 0.1
 0.1
 0.1
 0.1
 0.1
 0.1
 0.1
 0.1

Perform rollout

ψ̃_rollout = rollout(ψ_init, controls, Δt, system)
4×10 Matrix{Float64}:
 1.0   0.990995    0.96372    0.927133  …   0.634647   0.556804   0.448841
 0.0   0.0695055   0.111637   0.127104      0.276985   0.339543   0.327869
 0.0  -0.0996997  -0.200748  -0.300139     -0.610341  -0.654135  -0.72681
 0.0  -0.0561917  -0.135947  -0.184891     -0.38469   -0.383129  -0.403474

Check final state fidelity

ψ_goal = ComplexF64[0.0, 1.0]
rollout_fidelity(ψ_init, ψ_goal, controls, Δt, system)
0.27028928051207124

Open Quantum Systems

Add dissipation operators

a = annihilate(2)
dissipation_operators = [a'a, a]
2-element Vector{Matrix{ComplexF64}}:
 [0.0 + 0.0im 0.0 + 0.0im; 0.0 + 0.0im 1.0 + 0.0im]
 [0.0 + 0.0im 1.0 + 0.0im; 0.0 + 0.0im 0.0 + 0.0im]

Create open quantum system

open_system = OpenQuantumSystem(
    H_drives,
    T_max,
    drive_bounds,
    dissipation_operators=dissipation_operators
)
OpenQuantumSystem: levels = 2, n_drives = 2

Composite Systems

Create subsystems

sys1 = QuantumSystem([PAULIS[:X]], 10.0, [(-1.0, 1.0)])
sys2 = QuantumSystem([PAULIS[:Y]], 10.0, [(-1.0, 1.0)])
QuantumSystem: levels = 2, n_drives = 1

Define coupling

H_coupling = 0.1 * kron(PAULIS[:Z], PAULIS[:Z])
4×4 Matrix{ComplexF64}:
 0.1+0.0im   0.0+0.0im   0.0+0.0im   0.0+0.0im
 0.0+0.0im  -0.1+0.0im   0.0+0.0im  -0.0+0.0im
 0.0+0.0im   0.0+0.0im  -0.1+0.0im  -0.0+0.0im
 0.0+0.0im  -0.0+0.0im  -0.0+0.0im   0.1-0.0im

Create composite system

composite_sys = CompositeQuantumSystem(
    H_coupling,
    Matrix{ComplexF64}[],
    [sys1, sys2],
    10.0,
    Float64[]
)
CompositeQuantumSystem: levels = 4, n_drives = 2

Visualization

PiccoloQuantumObjects.jl integrates with NamedTrajectories.jl for plotting trajectories.

using CairoMakie

Plotting Controls and States

Create a trajectory with controls and states

T_plot = 50
controls_plot = 0.5 * sin.(2π * (1:T_plot) / T_plot)
Δt_plot = fill(T_max / T_plot, T_plot)
50-element Vector{Float64}:
 0.2
 0.2
 0.2
 0.2
 0.2
 0.2
 0.2
 0.2
 0.2
 0.2
 ⋮
 0.2
 0.2
 0.2
 0.2
 0.2
 0.2
 0.2
 0.2
 0.2

Perform a rollout to get the state evolution

ψ̃_traj = rollout(ψ_init, hcat(controls_plot, -controls_plot)', Δt_plot, system)
4×50 Matrix{Float64}:
 1.0   0.979911    0.919701    0.82018    …  -0.306636  -0.118921   0.0726682
 0.0  -0.0124493  -0.0388295  -0.0791013      0.13996    0.166036   0.198433
 0.0  -0.198659   -0.389215   -0.563388       0.894051   0.947331   0.957062
 0.0  -0.0124493  -0.0339619  -0.0603398     -0.295058  -0.246687  -0.198433

Create a NamedTrajectory for plotting

traj = NamedTrajectory(
    (
        ψ̃ = ψ̃_traj,
        a = hcat(controls_plot, -controls_plot)',
        Δt = Δt_plot
    );
    timestep=:Δt,
    controls=:a,
    initial=(ψ̃ = ket_to_iso(ψ_init),),
    goal=(ψ̃ = ket_to_iso(ψ_goal),)
)
N = 50, (ψ̃ = 1:4, a = 5:6, → Δt = 7:7)

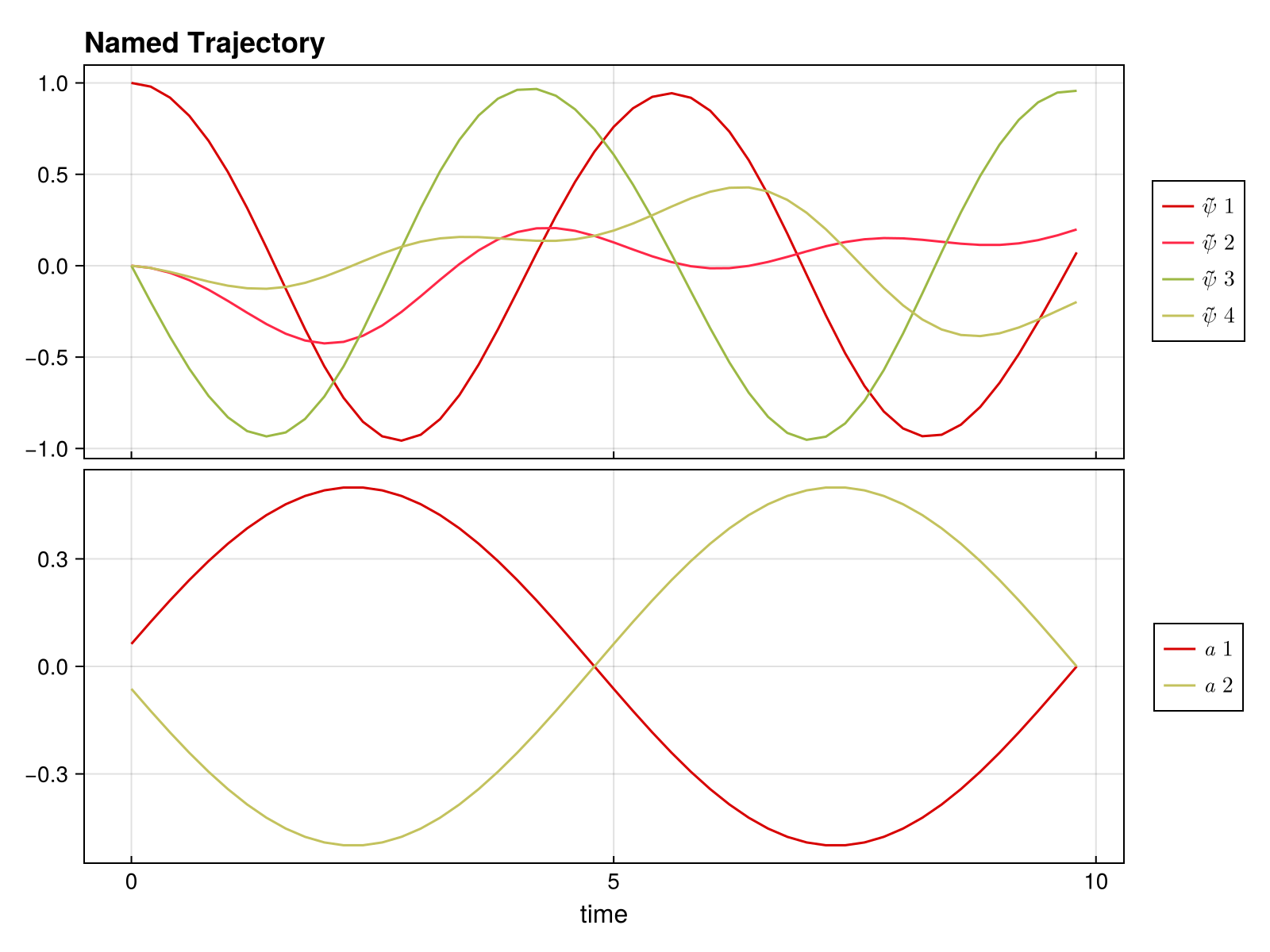

Plot the trajectory

plot(traj)
Example block output

Plotting State Populations

Use transformations to plot populations directly from isomorphic states

plot(
    traj,
    [:a],
    transformations=[
        :ψ̃ => (ψ̃ -> abs2.(iso_to_ket(ψ̃)))
    ],
    transformation_labels=["Populations"]
)
Example block output

Next Steps

  • Explore the Quantum Systems manual for detailed system construction
  • Learn about Quantum Objects for working with states and operators
  • See Rollouts for simulation and fidelity calculations
  • Understand Isomorphisms for the underlying mathematical transformations
