Pulses

Pulses parameterize how control amplitudes $\boldsymbol{u}(t)$ vary over time. The choice of pulse type determines both the NLP structure and the smoothness class of the resulting controls.

Overview

All pulse types share the plot_pulse interface. Each is rendered with a faithful visual reflecting its actual interpolation: stairs for zero-order hold, line segments for linear splines, smooth curves with knot markers for cubic splines, and dense samples for analytic / functional pulses. plot_pulse also honors the active Makie theme — set theme_dark() once at the top of your script and every plot below picks up dark-friendly colors automatically.

ZeroOrderPulse

Piecewise constant (zero-order hold) controls — the most common choice. On the interval $[t_k, t_{k+1})$, the control is constant:

\[\boldsymbol{u}(t) = \boldsymbol{u}_k, \qquad t \in [t_k,\, t_{k+1})\]

Smoothness is enforced indirectly via regularization of the discrete differences $\Delta\boldsymbol{u}_k$ and $\Delta^2\boldsymbol{u}_k$ (see Objectives).

Construction

using Piccolo

n_dr = 2
N = 100
T = 10.0

# Time points
times = collect(range(0, T, length = N))

# Control values: n_drives × N matrix
controls = 0.1 * randn(n_dr, N)

pulse_zop = ZeroOrderPulse(controls, times)

ZeroOrderPulse
  drives: 2
  duration: 10.0

Properties

# Evaluate at time t
u = pulse_zop(T / 2)
u

# Duration
duration(pulse_zop)

# Number of drives
n_drives(pulse_zop)

2

Visualization

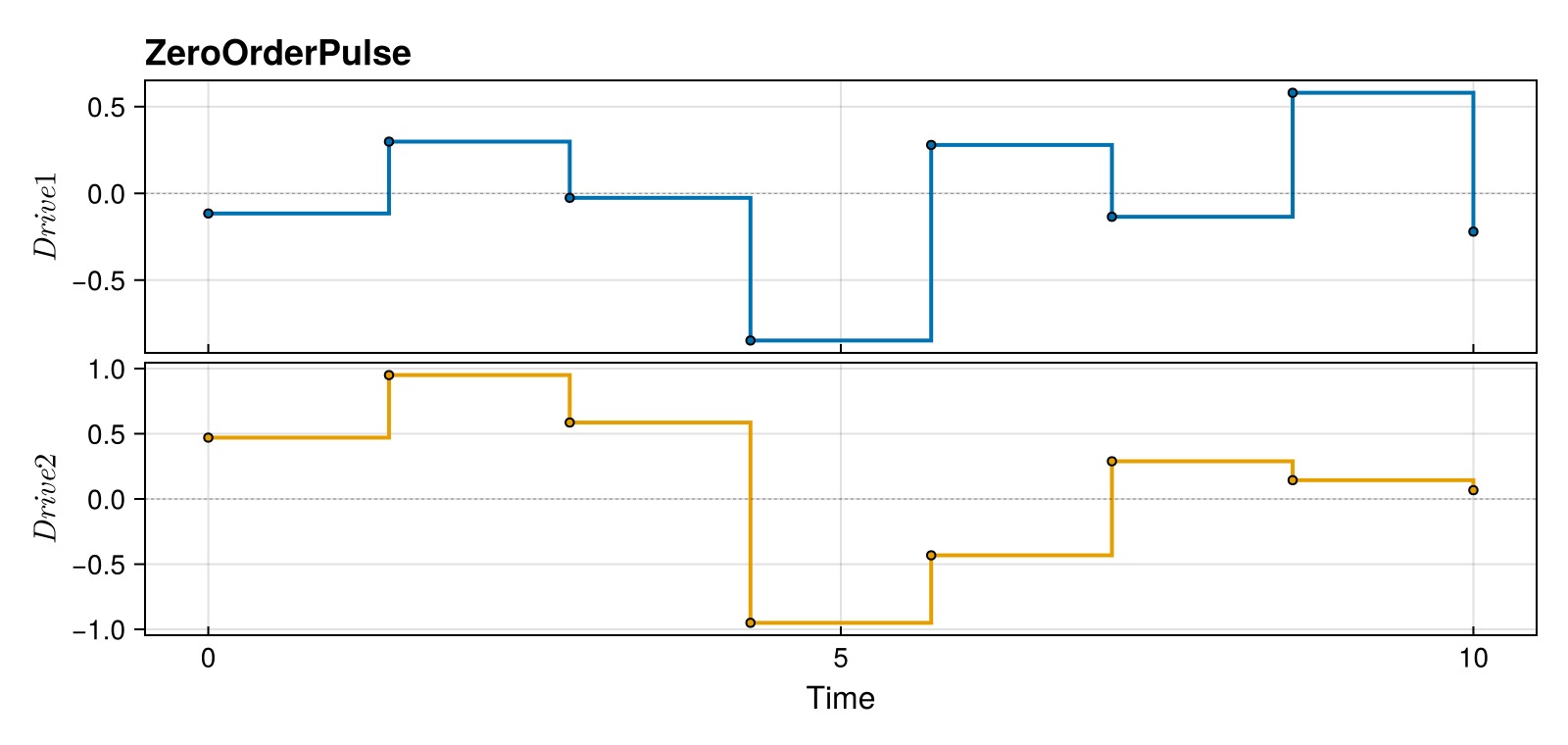

With fewer knots the step structure is clearly visible. plot_pulse uses stairs! with step = :post so each knot value is held until the next knot — the visual matches what the integrator actually sees.

N_demo = 8
demo_times = collect(range(0, T, length = N_demo))
# clamp the random initial guess inside [-1, 1] so the bounds figure below
# doesn't show stray knots crossing the hardware limit.
demo_controls = clamp.(0.5 * randn(n_dr, N_demo), -0.95, 0.95)
demo_zop = ZeroOrderPulse(demo_controls, demo_times)
plot_pulse(demo_zop; title = "ZeroOrderPulse", labels = ["Drive 1", "Drive 2"])

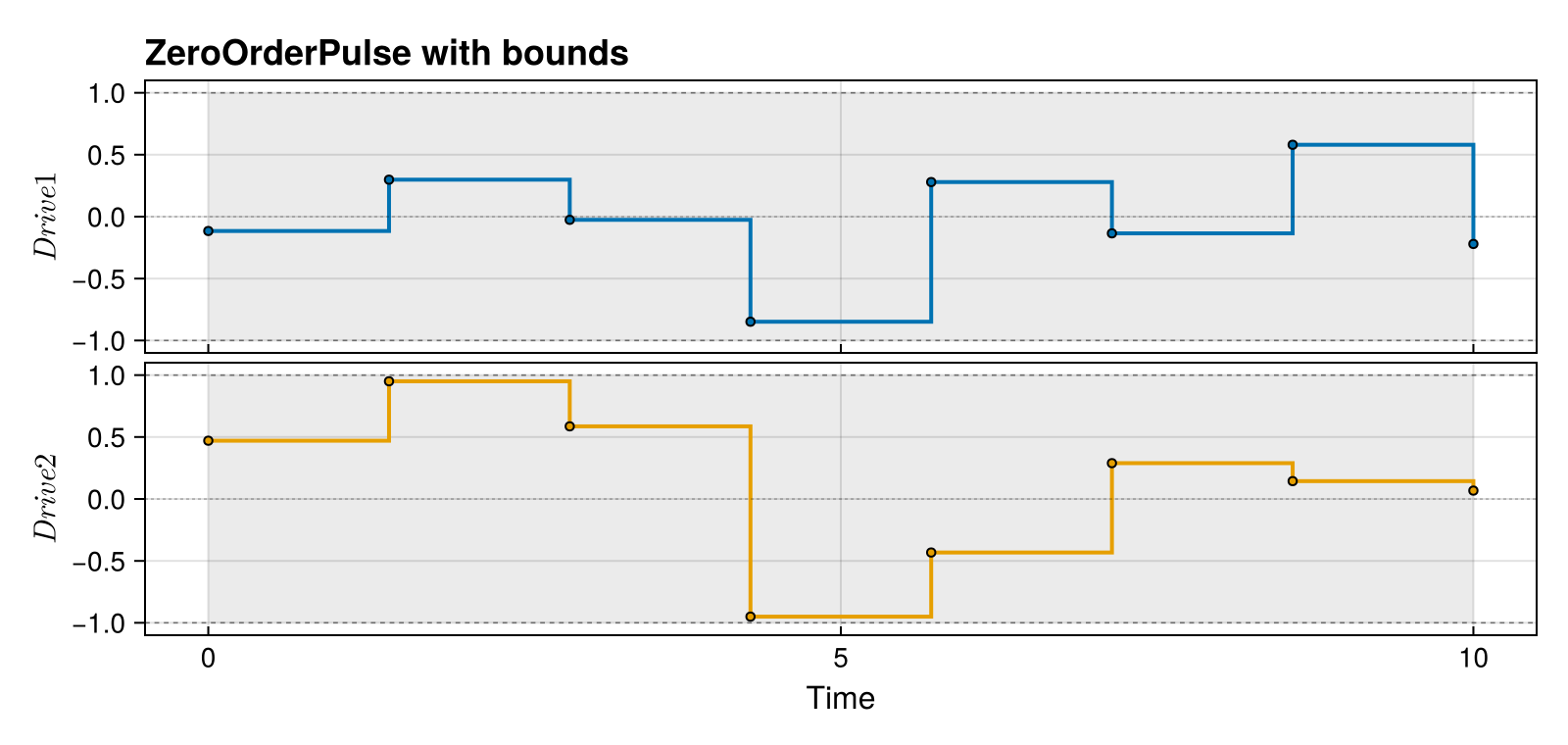

Adding hardware bounds shades a band on each subplot — useful when sanity- checking that an initial guess respects amplitude limits.

plot_pulse(
    demo_zop;
    title = "ZeroOrderPulse with bounds",
    labels = ["Drive 1", "Drive 2"],
    bounds = [(-1.0, 1.0), (-1.0, 1.0)],
)

Use Case

• Primary use: SmoothPulseProblem
• Characteristics: Simple structure, smoothness via derivative regularization
• Best for: Initial optimization, most quantum control problems

LinearSplinePulse

Linear interpolation between knot values. On $[t_k, t_{k+1}]$:

\[\boldsymbol{u}(t) = \boldsymbol{u}_k + \frac{t - t_k}{t_{k+1} - t_k}\,(\boldsymbol{u}_{k+1} - \boldsymbol{u}_k)\]

This gives $C^0$ continuity (continuous values, discontinuous first derivative at knots).

Construction

pulse_linear = LinearSplinePulse(controls, times)

LinearSplinePulse
  drives: 2
  duration: 10.0

Properties

• Continuous control values
• Discontinuous first derivative (at knots)
• Derivative = slope between knots

u_linear = pulse_linear(T / 2)
u_linear

2-element Vector{Float64}:
 -0.018304528264206033
 -0.006342548828613091

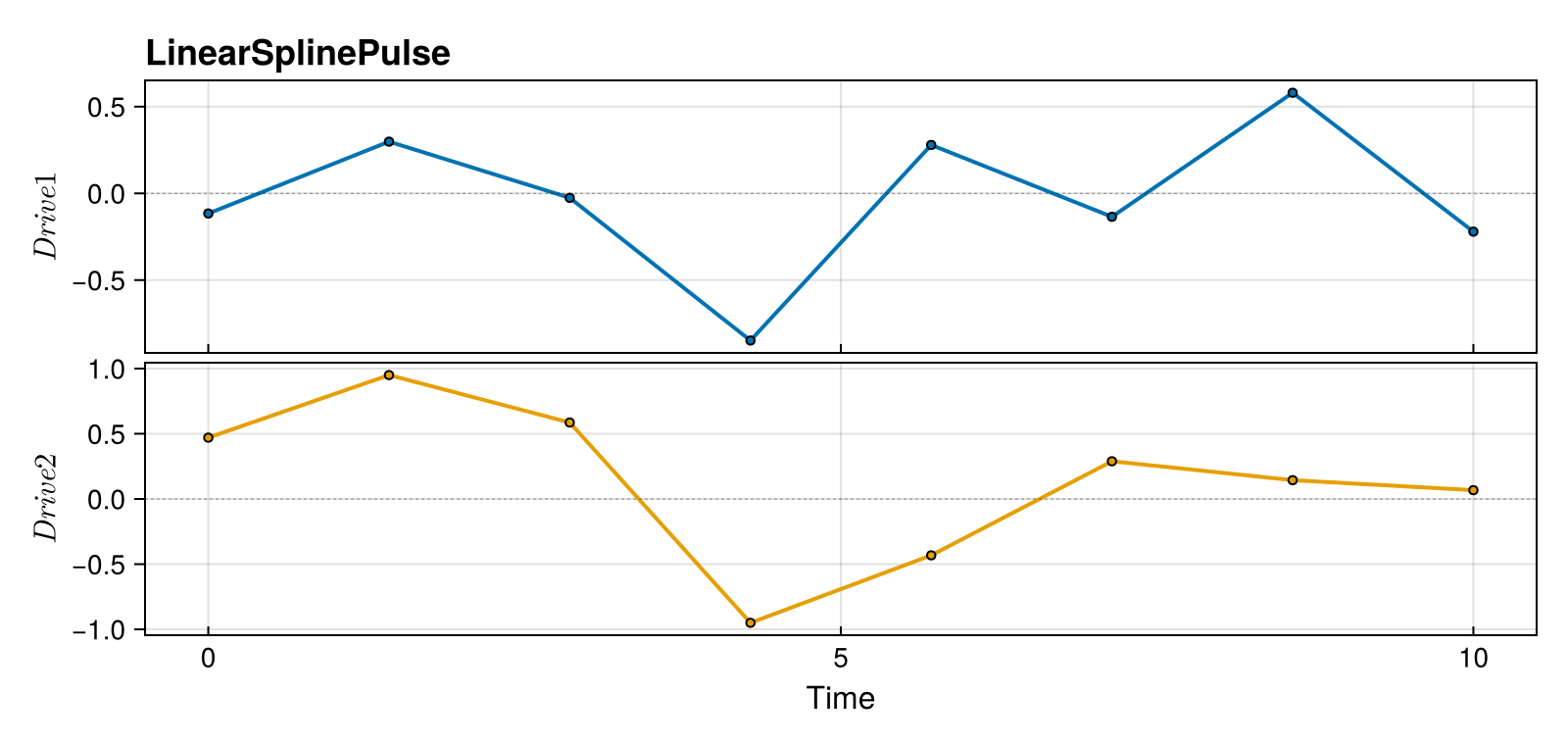

Visualization

demo_linear = LinearSplinePulse(demo_controls, demo_times)
plot_pulse(demo_linear; title = "LinearSplinePulse", labels = ["Drive 1", "Drive 2"])

CubicSplinePulse

Cubic Hermite spline interpolation with independent tangents $\dot{\boldsymbol{u}}_k$ at each knot. The Hermite basis gives $C^1$ continuity (continuous values and first derivatives).

On $[t_k, t_{k+1}]$ with $s = (t - t_k) / (t_{k+1} - t_k) \in [0, 1]$ and $h = t_{k+1} - t_k$:

\[\boldsymbol{u}(t) = (2s^3 - 3s^2 + 1)\,\boldsymbol{u}_k + (s^3 - 2s^2 + s)\,h\,\dot{\boldsymbol{u}}_k + (-2s^3 + 3s^2)\,\boldsymbol{u}_{k+1} + (s^3 - s^2)\,h\,\dot{\boldsymbol{u}}_{k+1}\]

Both $\boldsymbol{u}_k$ and $\dot{\boldsymbol{u}}_k$ are decision variables in SplinePulseProblem.

Construction

tangents = zeros(n_dr, N)  # Initial tangents (slopes)
pulse_cubic = CubicSplinePulse(controls, tangents, times)

CubicSplinePulse
  drives: 2
  duration: 10.0

Properties

• Continuous control values AND first derivatives
• Tangents are independent optimization variables
• Smooth C¹ continuous curves

u_cubic = pulse_cubic(T / 2)
u_cubic

2-element Vector{Float64}:
 -0.018304528264206033
 -0.006342548828613091

Visualization

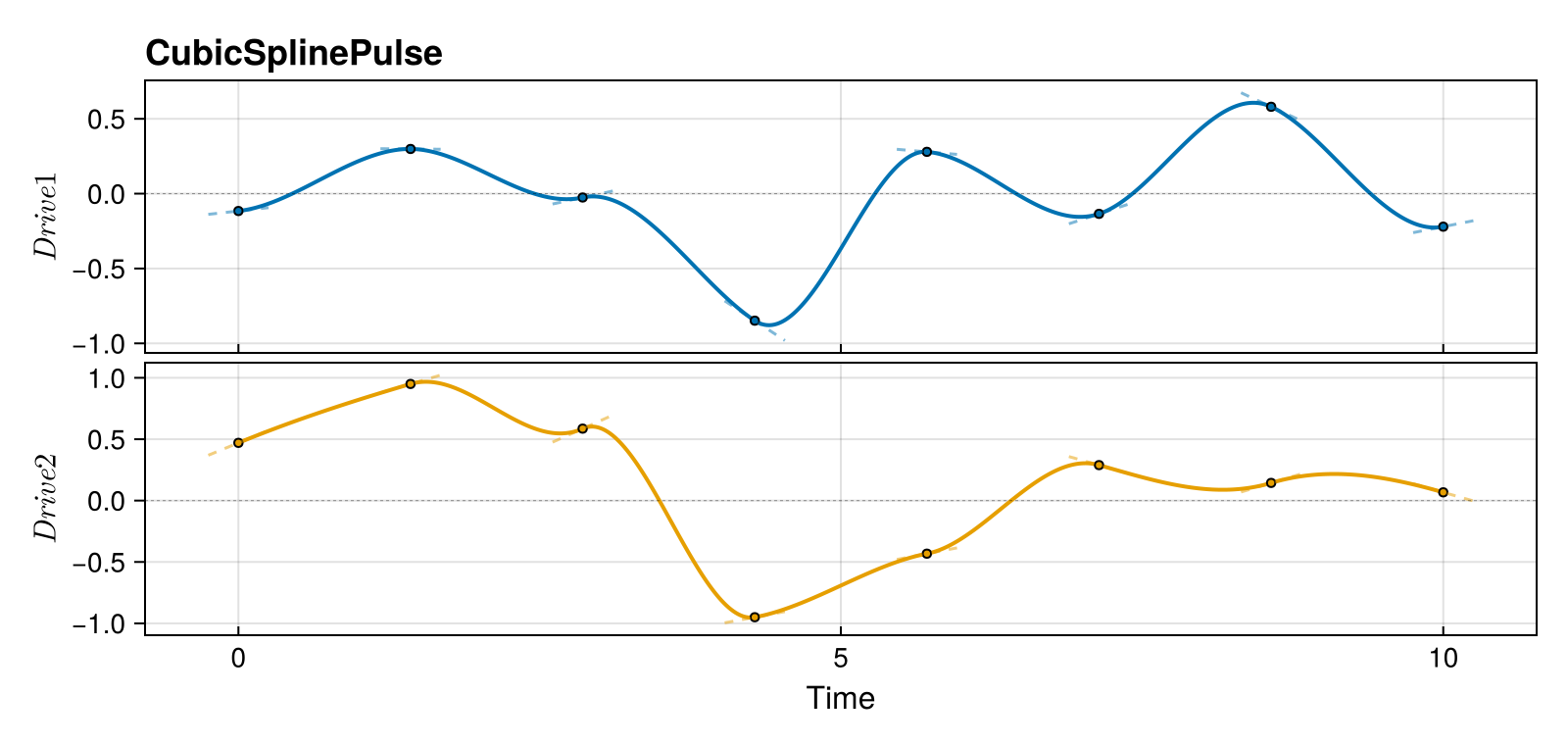

CubicSplinePulse renders as a smooth curve with knot markers. Enable show_tangents=true to see the Hermite derivative whiskers at each knot:

demo_tangents = 0.3 * randn(n_dr, N_demo)
demo_cubic = CubicSplinePulse(demo_controls, demo_tangents, demo_times)
plot_pulse(
    demo_cubic;
    title = "CubicSplinePulse",
    labels = ["Drive 1", "Drive 2"],
    show_tangents = true,
    tangent_scale = 0.05,
)

GaussianPulse

Parametric Gaussian envelope:

\[u_i(t) = A_i \exp\!\left(-\frac{(t - \mu_i)^2}{2\sigma_i^2}\right)\]

Useful for analytical pulse design and warm-starting.

Construction

amplitudes = [0.5, 0.3]
sigmas = [1.0, 1.5]
centers = [5.0, 5.0]

pulse_gauss = GaussianPulse(amplitudes, sigmas, centers, T)

u_gauss = pulse_gauss(5.0)
u_gauss

2-element Vector{Float64}:
 0.5
 0.3

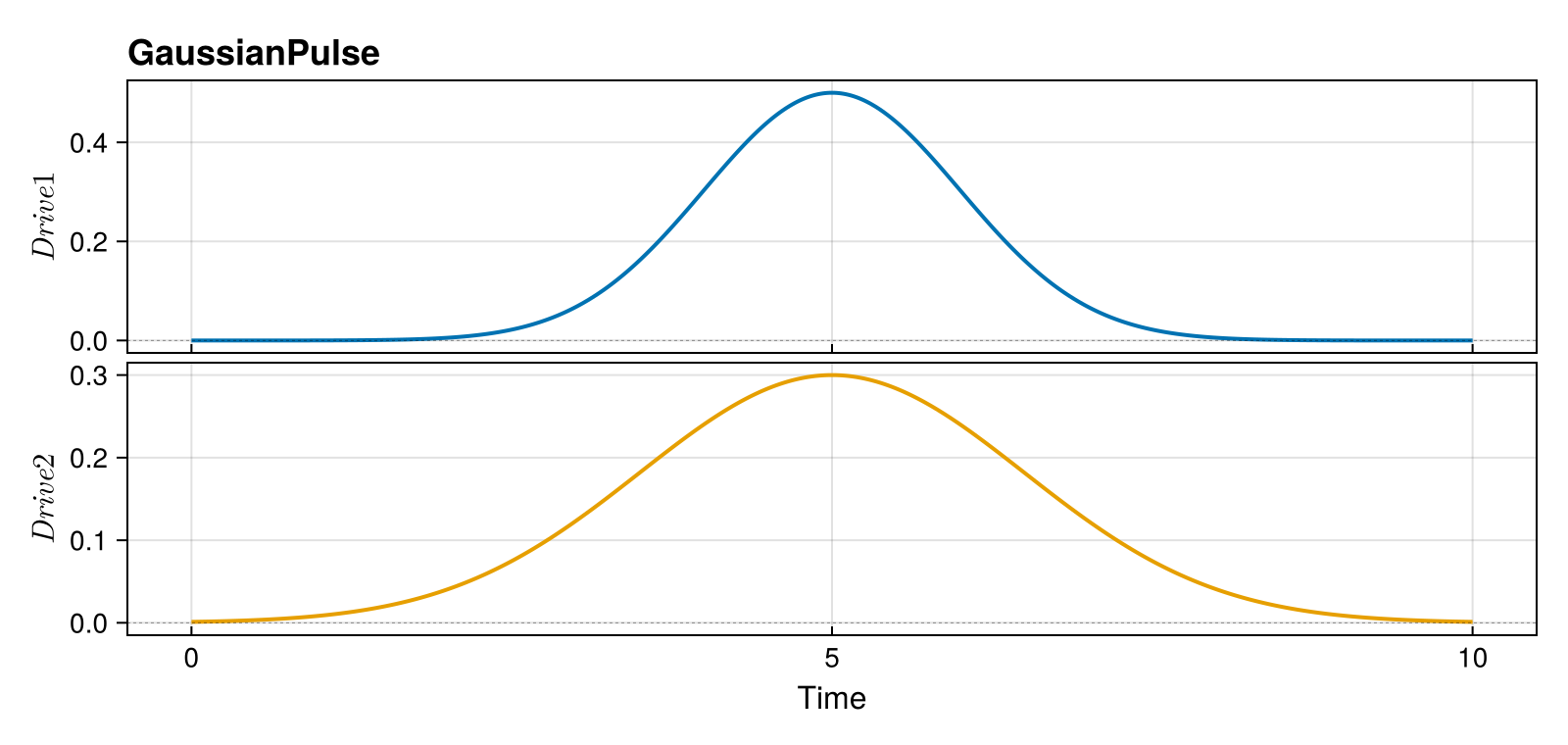

Visualization

Analytic pulses render as a dense smooth curve. n_samples controls the resolution — bump it up if you have very narrow features.

plot_pulse(pulse_gauss; title = "GaussianPulse", labels = ["Drive 1", "Drive 2"])

ErfPulse

Analytic error-function profile, often used for AC-Stark / phase-compensation in trapped-ion gates:

\[u_i(t) = A_i \,\mathrm{erf}\!\left(\sqrt{2}\,\frac{t - \mu_i}{\sigma_i}\right)\]

Construction

pulse_erf = ErfPulse([0.8], 2.0, T)

ErfPulse
  drives: 1
  duration: 10.0

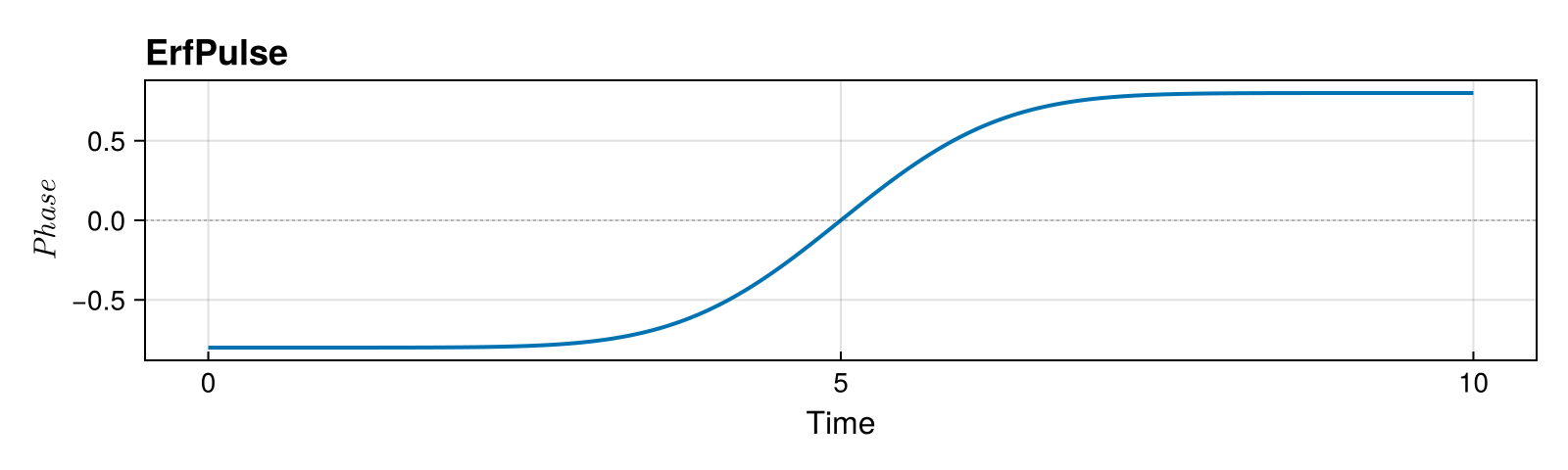

Visualization

plot_pulse(pulse_erf; title = "ErfPulse", labels = ["Phase"])

CompositePulse

Combine multiple pulses (e.g., different drives from different sources):

amplitude_pulse = GaussianPulse([0.5], 1.5, T)
phase_pulse = ErfPulse([0.8], 2.0, T)
correction_knots = collect(range(0, T, length = 8))
correction_vals = [0.0 0.02 -0.03 0.05 -0.04 0.03 -0.01 0.0]
correction_pulse = CubicSplinePulse(correction_vals, correction_knots)

composite = CompositePulse([amplitude_pulse, phase_pulse, correction_pulse], :concatenate)
n_drives(composite)

3

Visualization

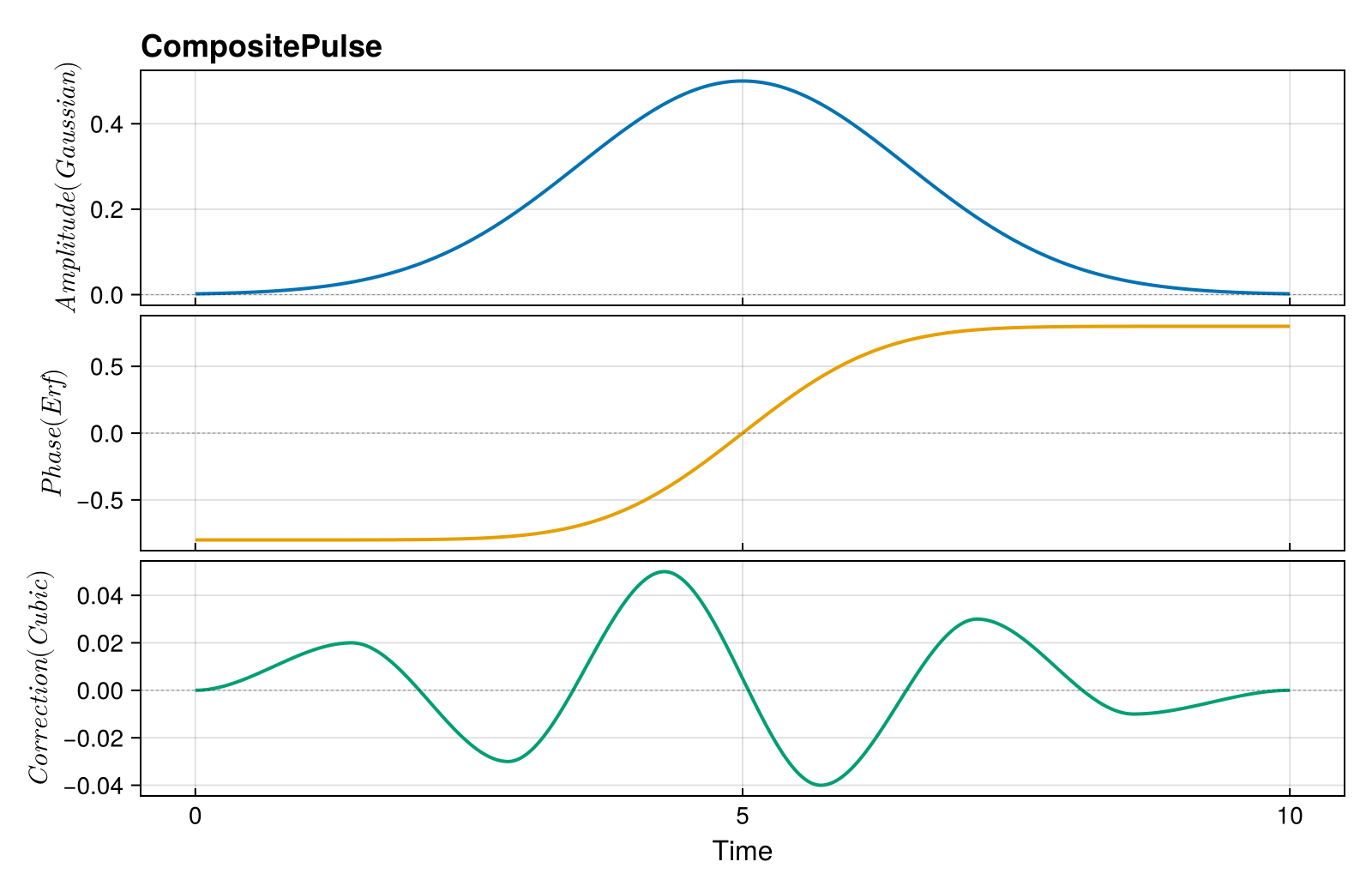

plot_pulse(
    composite;
    title = "CompositePulse",
    labels = ["Amplitude (Gaussian)", "Phase (Erf)", "Correction (Cubic)"],
)

FunctionPulse

A pulse defined by an arbitrary user-supplied function $f(t) \to \boldsymbol{u}$. Unlike the other pulse types, FunctionPulse has no decision variables — it is not optimized. Its purpose is to evaluate rollouts and fidelities for analytically-defined pulse shapes (e.g. sin² envelopes, Gaussian DRAG) without discretizing them into spline knots first.

Construction

T_fp = 1000.0
pulse_fn = FunctionPulse(t -> [0.0, 1.5 * sin(π * t / T_fp)^2], T_fp, 2)

# Evaluate at any time
pulse_fn(500.0)

2-element Vector{Float64}:
 0.0
 1.5

Visualization

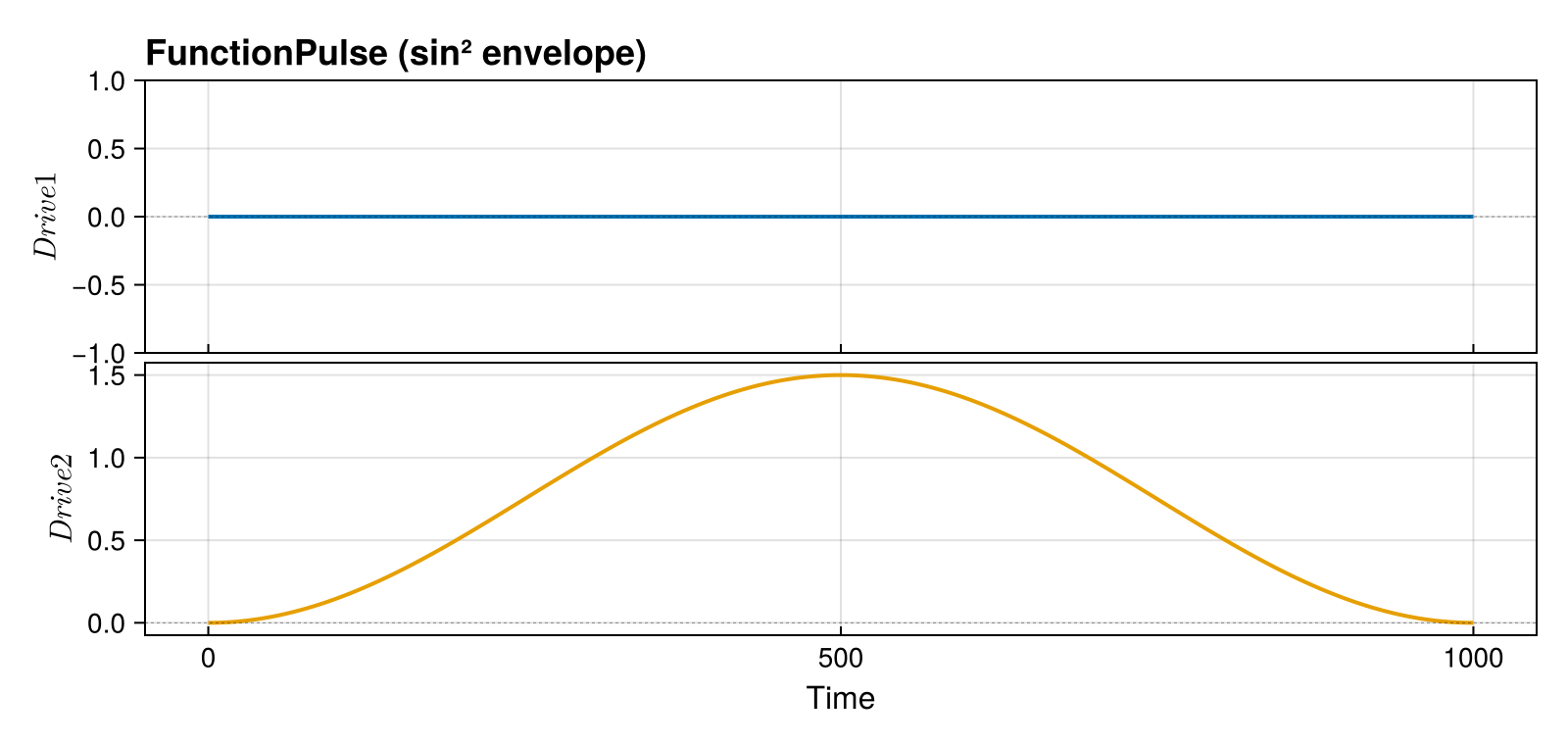

plot_pulse(
    pulse_fn;
    title = "FunctionPulse (sin² envelope)",
    labels = ["Drive 1", "Drive 2"],
)

Typical Use

Compute the fidelity of an analytic pulse shape before optimizing:

sys_fp = QuantumSystem(PAULIS[:Z], [PAULIS[:X], PAULIS[:Y]], [1.0, 1.0])
ψ_init_fp = ComplexF64[1, 0]
ψ_goal_fp = ComplexF64[0, 1]

qtraj_fn = KetTrajectory(sys_fp, pulse_fn, ψ_init_fp, ψ_goal_fp)
qtraj_fn_out = rollout(qtraj_fn)
fidelity(qtraj_fn_out)

2.9784980185975653e-10

The result gives a baseline fidelity that can guide the choice of pulse duration or initial control amplitude before setting up an optimization problem.

Limitations

• Not usable with problem templates (SmoothPulseProblem, SplinePulseProblem) because it carries no optimization variables.
• get_knot_times returns only [0.0, T] (start and end), so ODE solvers will not add extra tstops from knots.

Choosing a Pulse Type

Converting Between Pulse Types

ZeroOrderPulse → CubicSplinePulse

# Sample control values from the zero-order pulse
ctrl = hcat([pulse_zop(t) for t in times]...)

# Estimate tangents (finite differences)
tgts = similar(ctrl)
for k = 1:(N-1)
    tgts[:, k] = (ctrl[:, k+1] - ctrl[:, k]) / (times[k+1] - times[k])
end
tgts[:, N] = tgts[:, N-1]

# Create cubic spline
cubic_from_zop = CubicSplinePulse(ctrl, tgts, times)
duration(cubic_from_zop)

10.0

Arbitrary → ZeroOrderPulse

# Sample any pulse type to create a ZeroOrderPulse
new_times = collect(range(0, T, length = 200))
new_ctrl = hcat([pulse_cubic(t) for t in new_times]...)
resampled = ZeroOrderPulse(new_ctrl, new_times)
length(new_times)

200

Best Practices

1. Initialize Appropriately

max_amp = 0.1 * maximum(drive_bounds)
controls = max_amp * randn(n_drives, N)

2. Use Enough Time Points

# Rule of thumb: ~10 points per characteristic time scale
T = 10.0  # Total time
τ = 1.0   # Shortest feature you want to capture
N = ceil(Int, 10 * T / τ)

3. Save Optimized Pulses

Pulses are the primary output of Piccolo.jl. Save them after every successful solve so you can warm-start future optimizations, share results, or deploy to hardware:

optimized_pulse = get_pulse(qcp.qtraj)
save("my_gate.jld2", optimized_pulse)

See Saving and Loading Pulses for the full guide.

4. Start with ZeroOrderPulse

Even if you need smooth pulses, optimize with ZeroOrderPulse first, then convert to CubicSplinePulse for refinement.

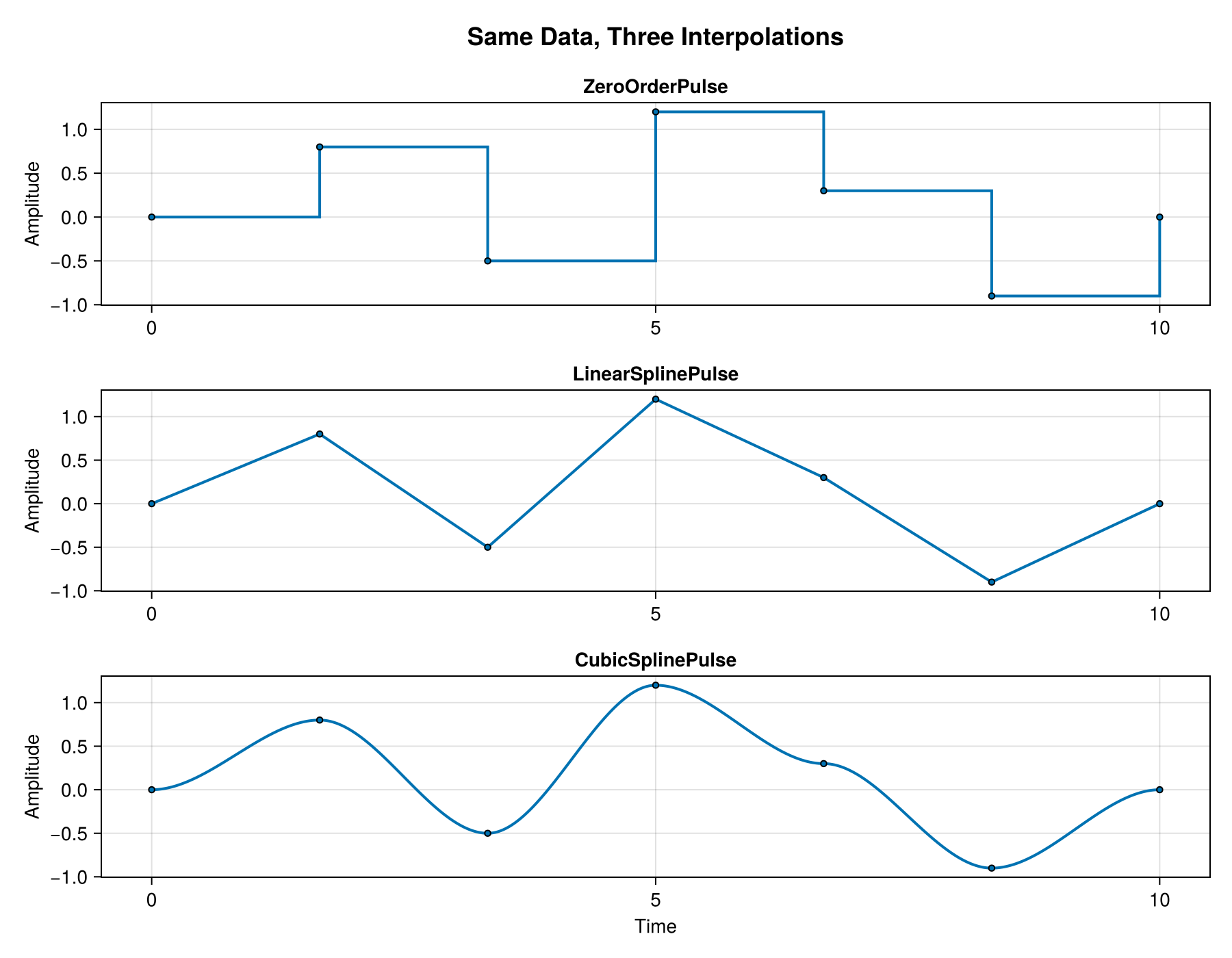

Comparing Interpolation Types

The same control data renders differently depending on the pulse type. This is the key reason plot_pulse uses type-specific rendering:

compare_times = collect(range(0, T, length = 7))
compare_controls = [0.0 0.8 -0.5 1.2 0.3 -0.9 0.0]

fig = Figure(size = (900, 700))

ax1 = Axis(fig[1, 1]; title = "ZeroOrderPulse", ylabel = "Amplitude")
plot_pulse!(ax1, ZeroOrderPulse(compare_controls, compare_times))

ax2 = Axis(fig[2, 1]; title = "LinearSplinePulse", ylabel = "Amplitude")
plot_pulse!(ax2, LinearSplinePulse(compare_controls, compare_times))

ax3 = Axis(fig[3, 1]; title = "CubicSplinePulse", xlabel = "Time", ylabel = "Amplitude")
plot_pulse!(ax3, CubicSplinePulse(compare_controls, compare_times))

Label(
    fig[0, 1],
    "Same Data, Three Interpolations";
    fontsize = 18,
    font = :bold,
    tellwidth = false,
)
fig

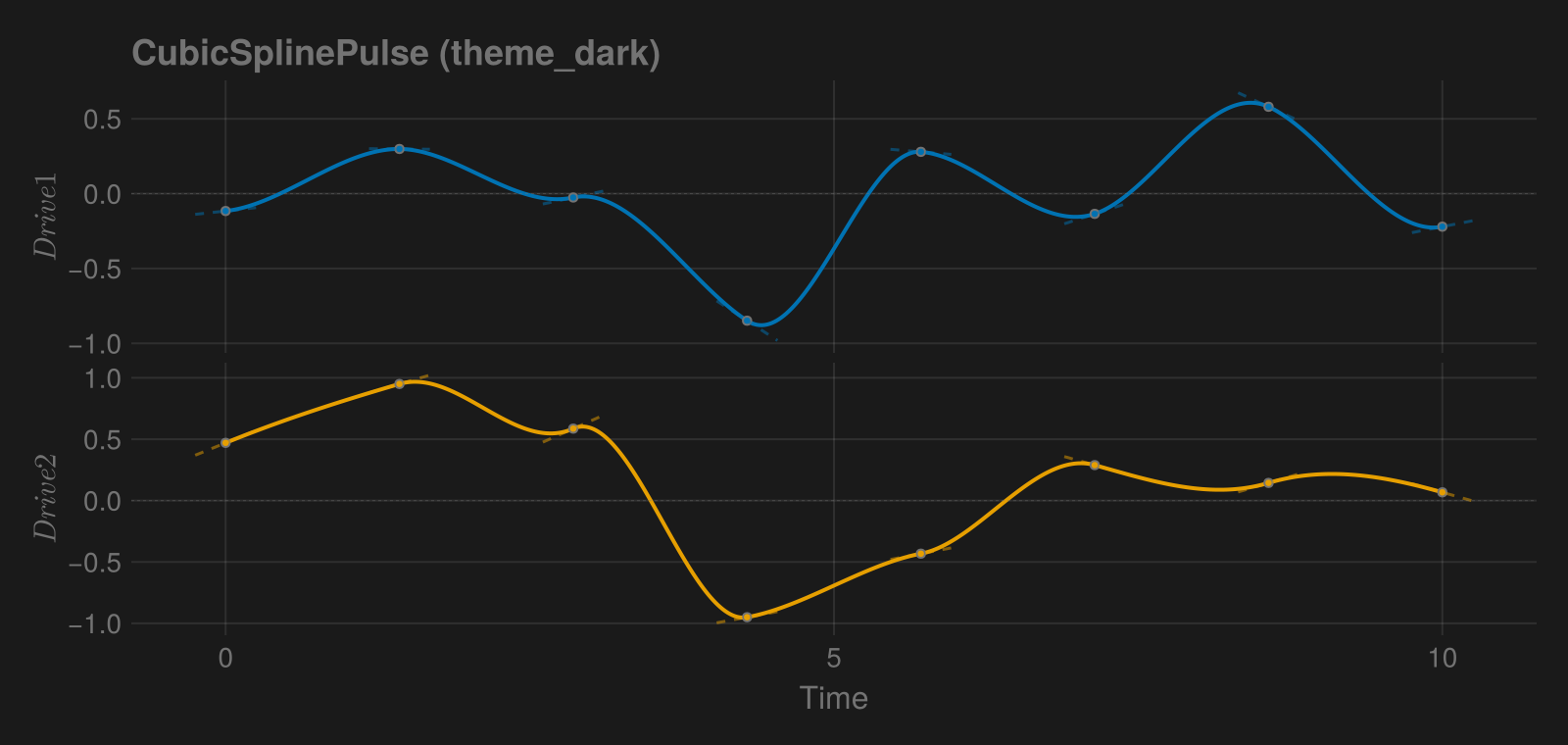

Theming

plot_pulse reads the active Makie theme. Calling set_theme!(theme_dark()) (or any other theme) at the top of a script makes every subsequent plot use a dark-friendly palette — line colors come from the theme's :palette[:color] cycle and knot strokes / zero-lines / hardware bounds switch to the theme's text color so they remain readable.

with_theme(theme_dark()) do
    plot_pulse(
        demo_cubic;
        title = "CubicSplinePulse (theme_dark)",
        labels = ["Drive 1", "Drive 2"],
        show_tangents = true,
        tangent_scale = 0.05,
    )
end

See Also

• SmoothPulseProblem - Using ZeroOrderPulse
• SplinePulseProblem - Using spline pulses
• Trajectories - Combining pulses with systems
