State Transfer

This tutorial covers state-to-state transfer using KetTrajectory. We'll prepare quantum states and implement gates via state mappings.

Overview

While UnitaryTrajectory optimizes for a full unitary gate, KetTrajectory optimizes for transferring a specific initial state to a target state. This is useful for:

State preparation
Gates where you only care about specific state mappings
Problems where full unitary tracking is expensive

using Piccolo
using CairoMakie
using Random
Random.seed!(123)

Random.TaskLocalRNG()

Single State Transfer

Let's prepare the |1⟩ state starting from |0⟩.

Setup

# Create quantum system
H_drift = 0.5 * PAULIS[:Z]
H_drives = [PAULIS[:X], PAULIS[:Y]]
sys = QuantumSystem(H_drift, H_drives, [1.0, 1.0])

# Time parameters
T, N = 10.0, 100
times = collect(range(0, T, length = N))

# Initial pulse
pulse = ZeroOrderPulse(0.1 * randn(2, N), times)

ZeroOrderPulse
  drives: 2
  duration: 10.0

Define State Transfer

# Initial state: |0⟩
ψ_init = ComplexF64[1.0, 0.0]

# Target state: |1⟩
ψ_goal = ComplexF64[0.0, 1.0]

# Create KetTrajectory
qtraj = KetTrajectory(sys, pulse, ψ_init, ψ_goal)

KetTrajectory{ZeroOrderPulse{DataInterpolations.ConstantInterpolation{Matrix{Float64}, Vector{Float64}, Vector{Union{}}, Float64}}, SciMLBase.ODESolution{ComplexF64, 2, Vector{Vector{ComplexF64}}, Nothing, Nothing, Vector{Float64}, Vector{Vector{Vector{ComplexF64}}}, Nothing, SciMLBase.ODEProblem{Vector{ComplexF64}, Tuple{Float64, Float64}, true, SciMLBase.NullParameters, SciMLBase.ODEFunction{true, SciMLBase.AutoSpecialize, SciMLOperators.MatrixOperator{ComplexF64, Matrix{ComplexF64}, SciMLOperators.FilterKwargs{Nothing, Val{()}}, SciMLOperators.FilterKwargs{Piccolo.Quantum.Rollouts.var"#update!#_construct_operator##2"{QuantumSystem{Piccolo.Quantum.QuantumSystems.var"#53#54"{SparseArrays.SparseMatrixCSC{ComplexF64, Int64}, Vector{SparseArrays.SparseMatrixCSC{ComplexF64, Int64}}, Int64}, Piccolo.Quantum.QuantumSystems.var"#55#56"{Vector{SparseArrays.SparseMatrixCSC{Float64, Int64}}, Int64, SparseArrays.SparseMatrixCSC{Float64, Int64}}, @NamedTuple{}, Vector{DriftTerm{SparseArrays.SparseMatrixCSC{ComplexF64, Int64}, Returns{Float64}, Returns{Float64}}}, SparseArrays.SparseMatrixCSC{ComplexF64, Int64}}}, Val{()}}}, LinearAlgebra.UniformScaling{Bool}, Nothing, Nothing, Nothing, Nothing, Nothing, Nothing, Nothing, Nothing, Nothing, Nothing, Nothing, Nothing, typeof(SciMLBase.DEFAULT_OBSERVED), Nothing, Piccolo.Quantum.Rollouts.PiccoloRolloutSystem{Union{Int64, AbstractVector{Int64}, CartesianIndex, CartesianIndices}}, Nothing, Nothing}, Base.Pairs{Symbol, Vector{Float64}, Nothing, @NamedTuple{tstops::Vector{Float64}}}, SciMLBase.StandardODEProblem}, OrdinaryDiffEqLinear.MagnusAdapt4, OrdinaryDiffEqCore.InterpolationData{SciMLBase.ODEFunction{true, SciMLBase.AutoSpecialize, SciMLOperators.MatrixOperator{ComplexF64, Matrix{ComplexF64}, SciMLOperators.FilterKwargs{Nothing, Val{()}}, SciMLOperators.FilterKwargs{Piccolo.Quantum.Rollouts.var"#update!#_construct_operator##2"{QuantumSystem{Piccolo.Quantum.QuantumSystems.var"#53#54"{SparseArrays.SparseMatrixCSC{ComplexF64, Int64}, Vector{SparseArrays.SparseMatrixCSC{ComplexF64, Int64}}, Int64}, Piccolo.Quantum.QuantumSystems.var"#55#56"{Vector{SparseArrays.SparseMatrixCSC{Float64, Int64}}, Int64, SparseArrays.SparseMatrixCSC{Float64, Int64}}, @NamedTuple{}, Vector{DriftTerm{SparseArrays.SparseMatrixCSC{ComplexF64, Int64}, Returns{Float64}, Returns{Float64}}}, SparseArrays.SparseMatrixCSC{ComplexF64, Int64}}}, Val{()}}}, LinearAlgebra.UniformScaling{Bool}, Nothing, Nothing, Nothing, Nothing, Nothing, Nothing, Nothing, Nothing, Nothing, Nothing, Nothing, Nothing, typeof(SciMLBase.DEFAULT_OBSERVED), Nothing, Piccolo.Quantum.Rollouts.PiccoloRolloutSystem{Union{Int64, AbstractVector{Int64}, CartesianIndex, CartesianIndices}}, Nothing, Nothing}, Vector{Vector{ComplexF64}}, Vector{Float64}, Vector{Vector{Vector{ComplexF64}}}, Nothing, OrdinaryDiffEqLinear.MagnusAdapt4Cache{Vector{ComplexF64}, Vector{ComplexF64}, Matrix{ComplexF64}, Vector{ComplexF64}, Nothing}, Nothing}, SciMLBase.DEStats, Nothing, Nothing, Nothing, Nothing}}(QuantumSystem: levels = 2, n_drives = 2, ZeroOrderPulse(Number of drives = 2, T = 10.0), ComplexF64[1.0 + 0.0im, 0.0 + 0.0im], ComplexF64[0.0 + 0.0im, 1.0 + 0.0im], ComplexF64[1.0 + 0.0im 0.9986546829501518 - 0.049977576037549286im … 0.21989024288659764 + 0.9686899992340066im 0.2656562004673531 + 0.9540494064401241im; 0.0 + 0.0im -0.011215692818783948 - 0.008079254281018215im … -0.10623435203872292 - 0.04474627262931361im -0.11812797096511285 - 0.07254168250166698im])

Solve

qcp = SmoothPulseProblem(qtraj, N; Q = 100.0, R = 1e-2)
solve!(qcp; max_iter = 20, verbose = false, print_level = 1)

fidelity(qcp)

0.9669714846109944

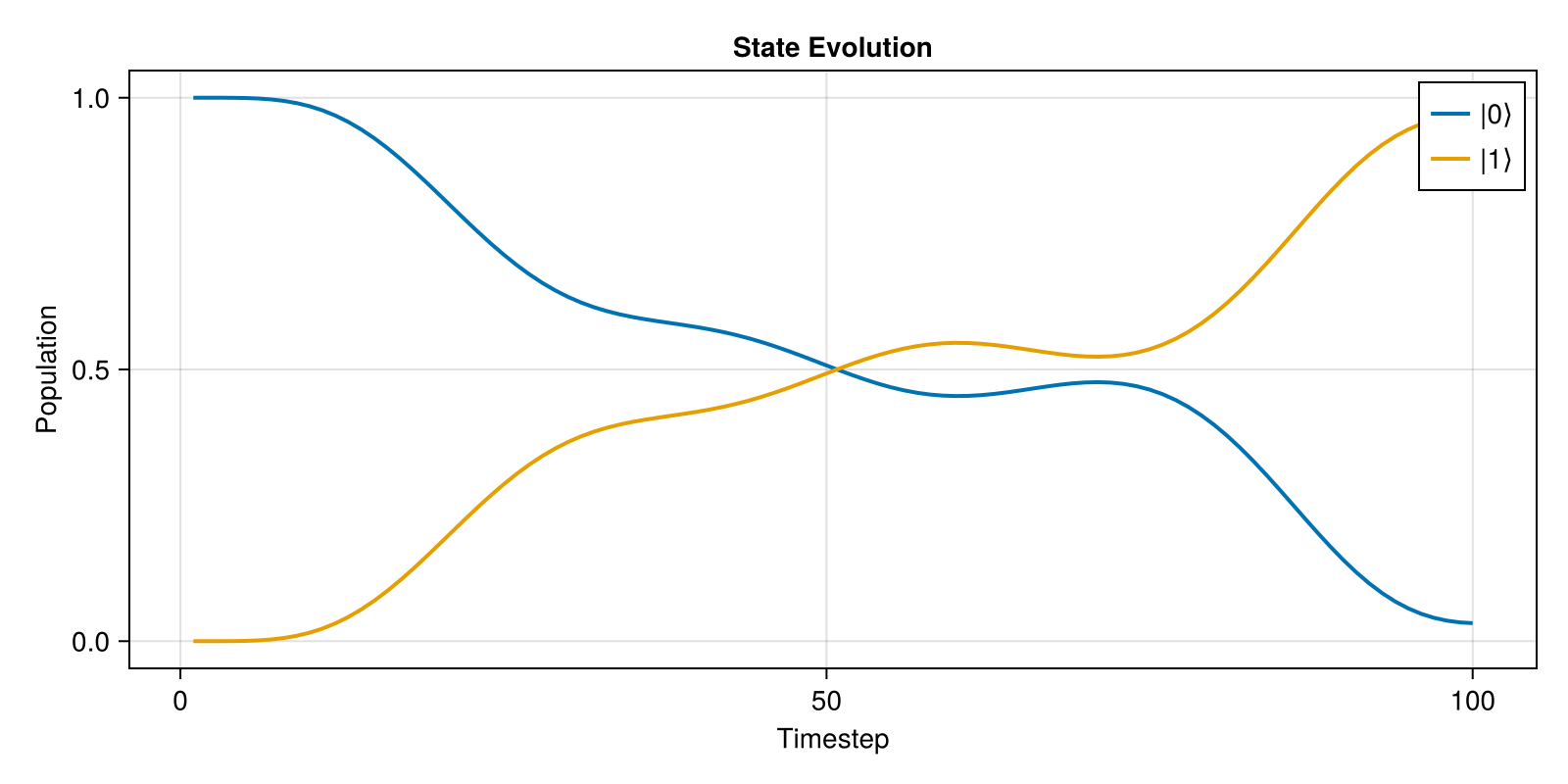

Visualize State Evolution

traj = get_trajectory(qcp)

# Convert isomorphic states to physical states
n_steps = size(traj[:ψ̃], 2)
populations = zeros(2, n_steps)

for k = 1:n_steps
    ψ = iso_to_ket(traj[:ψ̃][:, k])
    populations[:, k] = abs2.(ψ)
end

# Plot
fig = Figure(size = (800, 400))

ax1 = Axis(fig[1, 1], xlabel = "Timestep", ylabel = "Population", title = "State Evolution")
lines!(ax1, 1:n_steps, populations[1, :], label = "|0⟩", linewidth = 2)
lines!(ax1, 1:n_steps, populations[2, :], label = "|1⟩", linewidth = 2)
axislegend(ax1, position = :rt)

fig

Multi-State Transfer (Gate via States)

We can define a gate by specifying how it maps multiple states. MultiKetTrajectory optimizes all mappings simultaneously with coherent phases.

Define X Gate via State Mappings

The X gate maps:

|0⟩ → |1⟩
|1⟩ → |0⟩

# Basis states
ψ0 = ComplexF64[1.0, 0.0]  # |0⟩
ψ1 = ComplexF64[0.0, 1.0]  # |1⟩

# Initial states and their targets
initial_states = [ψ0, ψ1]
goal_states = [ψ1, ψ0]  # X gate swaps them

# Create new pulse for this problem
pulse_multi = ZeroOrderPulse(0.1 * randn(2, N), times)

# Create MultiKetTrajectory
qtraj_multi = MultiKetTrajectory(sys, pulse_multi, initial_states, goal_states)

MultiKetTrajectory{ZeroOrderPulse{DataInterpolations.ConstantInterpolation{Matrix{Float64}, Vector{Float64}, Vector{Union{}}, Float64}}, SciMLBase.EnsembleSolution{ComplexF64, 3, Vector{SciMLBase.ODESolution{ComplexF64, 2, Vector{Vector{ComplexF64}}, Nothing, Nothing, Vector{Float64}, Vector{Vector{Vector{ComplexF64}}}, Nothing, SciMLBase.ODEProblem{Vector{ComplexF64}, Tuple{Float64, Float64}, true, SciMLBase.NullParameters, SciMLBase.ODEFunction{true, SciMLBase.AutoSpecialize, SciMLOperators.MatrixOperator{ComplexF64, Matrix{ComplexF64}, SciMLOperators.FilterKwargs{Nothing, Val{()}}, SciMLOperators.FilterKwargs{Piccolo.Quantum.Rollouts.var"#update!#_construct_operator##2"{QuantumSystem{Piccolo.Quantum.QuantumSystems.var"#53#54"{SparseArrays.SparseMatrixCSC{ComplexF64, Int64}, Vector{SparseArrays.SparseMatrixCSC{ComplexF64, Int64}}, Int64}, Piccolo.Quantum.QuantumSystems.var"#55#56"{Vector{SparseArrays.SparseMatrixCSC{Float64, Int64}}, Int64, SparseArrays.SparseMatrixCSC{Float64, Int64}}, @NamedTuple{}, Vector{DriftTerm{SparseArrays.SparseMatrixCSC{ComplexF64, Int64}, Returns{Float64}, Returns{Float64}}}, SparseArrays.SparseMatrixCSC{ComplexF64, Int64}}}, Val{()}}}, LinearAlgebra.UniformScaling{Bool}, Nothing, Nothing, Nothing, Nothing, Nothing, Nothing, Nothing, Nothing, Nothing, Nothing, Nothing, Nothing, typeof(SciMLBase.DEFAULT_OBSERVED), Nothing, Piccolo.Quantum.Rollouts.PiccoloRolloutSystem{Union{Int64, AbstractVector{Int64}, CartesianIndex, CartesianIndices}}, Nothing, Nothing}, Base.Pairs{Symbol, Vector{Float64}, Nothing, @NamedTuple{tstops::Vector{Float64}}}, SciMLBase.StandardODEProblem}, OrdinaryDiffEqLinear.MagnusAdapt4, OrdinaryDiffEqCore.InterpolationData{SciMLBase.ODEFunction{true, SciMLBase.AutoSpecialize, SciMLOperators.MatrixOperator{ComplexF64, Matrix{ComplexF64}, SciMLOperators.FilterKwargs{Nothing, Val{()}}, SciMLOperators.FilterKwargs{Piccolo.Quantum.Rollouts.var"#update!#_construct_operator##2"{QuantumSystem{Piccolo.Quantum.QuantumSystems.var"#53#54"{SparseArrays.SparseMatrixCSC{ComplexF64, Int64}, Vector{SparseArrays.SparseMatrixCSC{ComplexF64, Int64}}, Int64}, Piccolo.Quantum.QuantumSystems.var"#55#56"{Vector{SparseArrays.SparseMatrixCSC{Float64, Int64}}, Int64, SparseArrays.SparseMatrixCSC{Float64, Int64}}, @NamedTuple{}, Vector{DriftTerm{SparseArrays.SparseMatrixCSC{ComplexF64, Int64}, Returns{Float64}, Returns{Float64}}}, SparseArrays.SparseMatrixCSC{ComplexF64, Int64}}}, Val{()}}}, LinearAlgebra.UniformScaling{Bool}, Nothing, Nothing, Nothing, Nothing, Nothing, Nothing, Nothing, Nothing, Nothing, Nothing, Nothing, Nothing, typeof(SciMLBase.DEFAULT_OBSERVED), Nothing, Piccolo.Quantum.Rollouts.PiccoloRolloutSystem{Union{Int64, AbstractVector{Int64}, CartesianIndex, CartesianIndices}}, Nothing, Nothing}, Vector{Vector{ComplexF64}}, Vector{Float64}, Vector{Vector{Vector{ComplexF64}}}, Nothing, OrdinaryDiffEqLinear.MagnusAdapt4Cache{Vector{ComplexF64}, Vector{ComplexF64}, Matrix{ComplexF64}, Vector{ComplexF64}, Nothing}, Nothing}, SciMLBase.DEStats, Nothing, Nothing, Nothing, Nothing}}}}(QuantumSystem: levels = 2, n_drives = 2, ZeroOrderPulse(Number of drives = 2, T = 10.0), Vector{ComplexF64}[[1.0 + 0.0im, 0.0 + 0.0im], [0.0 + 0.0im, 1.0 + 0.0im]], Vector{ComplexF64}[[0.0 + 0.0im, 1.0 + 0.0im], [1.0 + 0.0im, 0.0 + 0.0im]], [0.5, 0.5], ComplexF64[1.0 + 0.0im 0.9984186197391062 - 0.04997364088264558im … 0.23362005723166956 + 0.969270754287099im 0.28146561110526647 + 0.956487839495784im; 0.0 + 0.0im 0.025562895335622466 + 0.0030713770935270183im … -0.050707250396324524 - 0.058005590248229336im -0.044279319118150244 - 0.06282885133655476im;;; 0.0 + 0.0im -0.02556289533562247 + 0.0030713770935270174im … 0.05070725039632503 - 0.058005590248228996im 0.04427931911815074 - 0.06282885133655443im; 1.0 + 0.0im 0.9984186197391061 + 0.049973640882645574im … 0.233620057231671 - 0.9692707542871023im 0.28146561110526813 - 0.9564878394957875im])

Solve with Coherent Fidelity

MultiKetTrajectory uses CoherentKetInfidelityObjective, which ensures not just that each state reaches its target, but that the relative phases between states are preserved correctly.

qcp_multi = SmoothPulseProblem(qtraj_multi, N; Q = 100.0, R = 1e-2)
solve!(
    qcp_multi;
    max_iter = 20,
    verbose = false,
    print_level = 1,
)

fidelity(qcp_multi)

0.9999991778522876

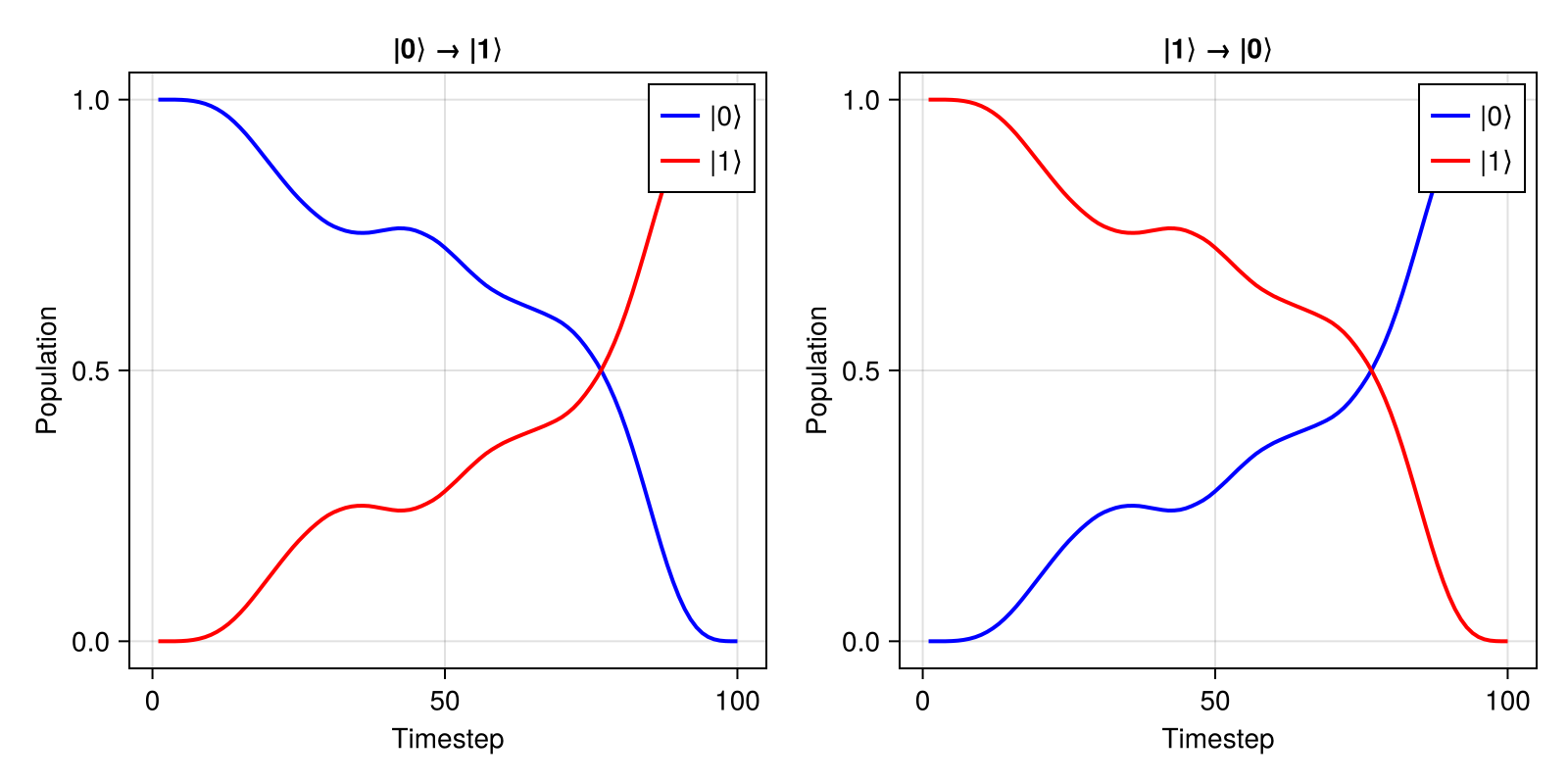

Visualize Both State Evolutions

traj_multi = get_trajectory(qcp_multi)

# Extract populations for both initial states
# MultiKetTrajectory stores states as :ψ̃1, :ψ̃2, etc.
n_steps = size(traj_multi[:ψ̃1], 2)

pops1 = zeros(2, n_steps)  # Evolution from |0⟩
pops2 = zeros(2, n_steps)  # Evolution from |1⟩

for k = 1:n_steps
    ψ1_k = iso_to_ket(traj_multi[:ψ̃1][:, k])
    ψ2_k = iso_to_ket(traj_multi[:ψ̃2][:, k])
    pops1[:, k] = abs2.(ψ1_k)
    pops2[:, k] = abs2.(ψ2_k)
end

fig2 = Figure(size = (800, 400))

ax1 = Axis(fig2[1, 1], xlabel = "Timestep", ylabel = "Population", title = "|0⟩ → |1⟩")
lines!(ax1, 1:n_steps, pops1[1, :], label = "|0⟩", linewidth = 2, color = :blue)
lines!(ax1, 1:n_steps, pops1[2, :], label = "|1⟩", linewidth = 2, color = :red)
axislegend(ax1, position = :rt)

ax2 = Axis(fig2[1, 2], xlabel = "Timestep", ylabel = "Population", title = "|1⟩ → |0⟩")
lines!(ax2, 1:n_steps, pops2[1, :], label = "|0⟩", linewidth = 2, color = :blue)
lines!(ax2, 1:n_steps, pops2[2, :], label = "|1⟩", linewidth = 2, color = :red)
axislegend(ax2, position = :rt)

fig2

When to Use Each Trajectory Type

Trajectory	Use Case	Pros	Cons
`UnitaryTrajectory`	Full gate synthesis	Complete gate, any input	Tracks d² elements
`KetTrajectory`	Single state prep	Fast, simple	Single state only
`MultiKetTrajectory`	Gate via state maps	Phase coherent	Need all relevant states

Superposition State Preparation

Let's prepare a superposition state: |+⟩ = (|0⟩ + |1⟩)/√2

ψ_plus = ComplexF64[1, 1] / sqrt(2)

pulse_super = ZeroOrderPulse(0.1 * randn(2, N), times)
qtraj_super = KetTrajectory(sys, pulse_super, ψ0, ψ_plus)

qcp_super = SmoothPulseProblem(qtraj_super, N; Q = 100.0, R = 1e-2)
solve!(
    qcp_super;
    max_iter = 20,
    verbose = false,
    print_level = 1,
)

fidelity(qcp_super)

0.985337917192531

Verify the final state:

traj_super = get_trajectory(qcp_super)
ψ_final = iso_to_ket(traj_super[:ψ̃][:, end])
round.(ψ_final, digits = 3)

2-element Vector{ComplexF64}:
 0.419 + 0.637im
 0.248 + 0.61im
